The Footers, Foundation and the Wall

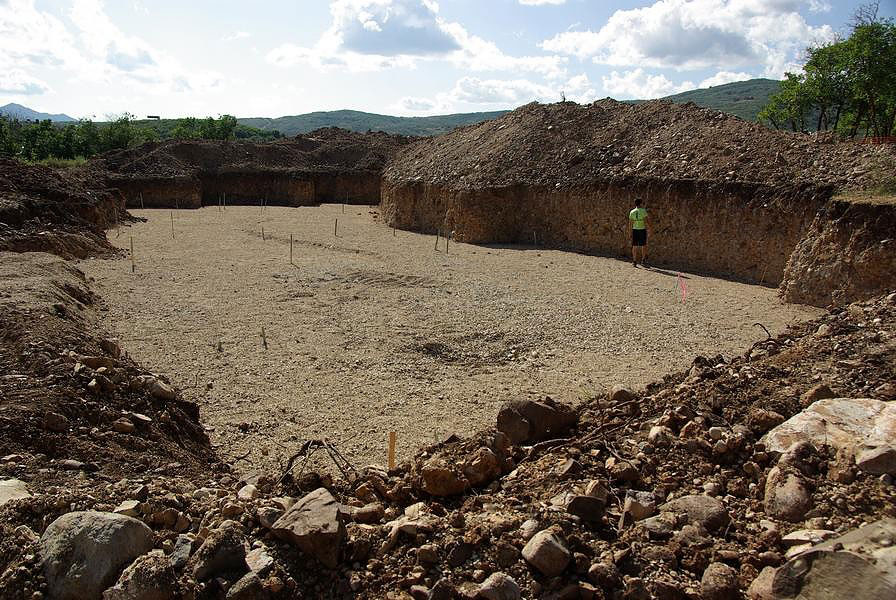

The excavation for the house

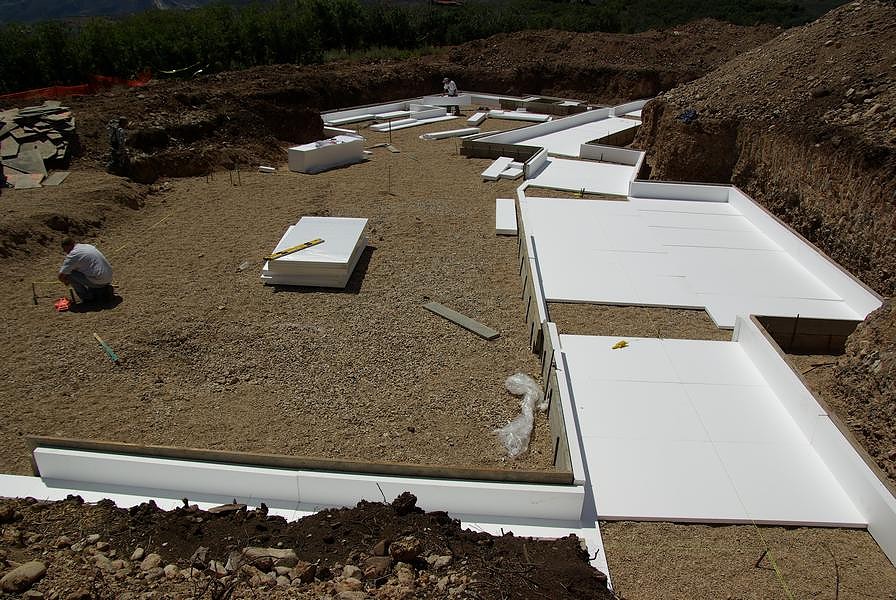

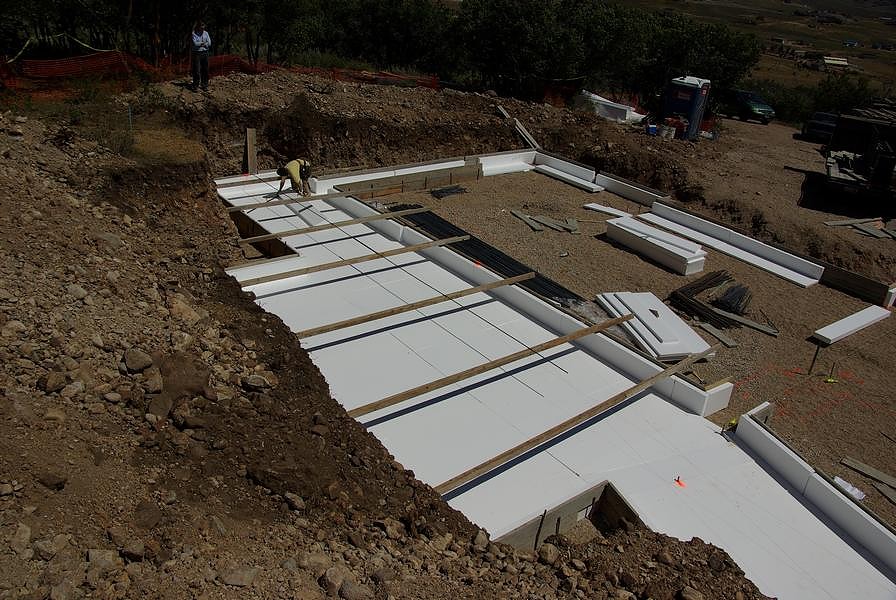

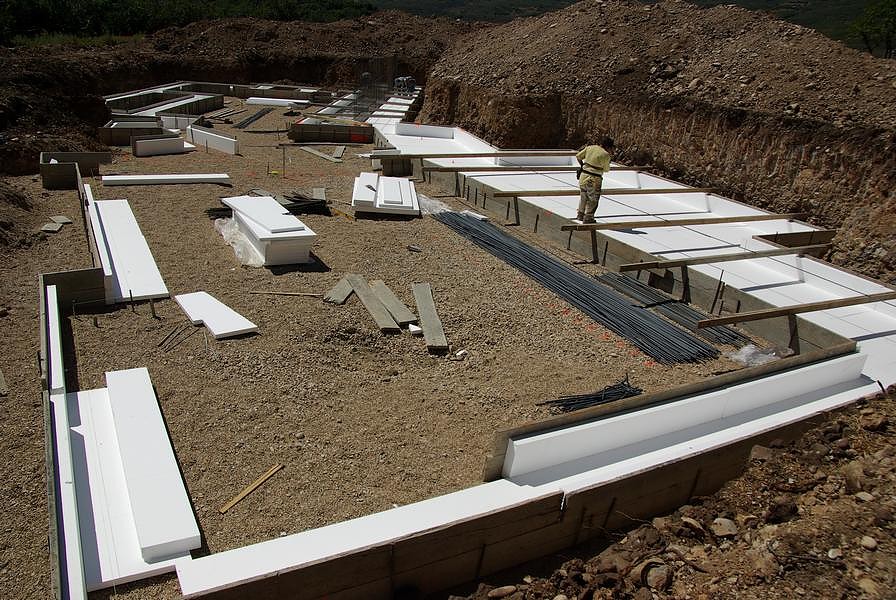

2 inch thick extra dense EPS under footers
Sides of footers also receive 2 inches of EPS
Footers are extra wide to spread pressure

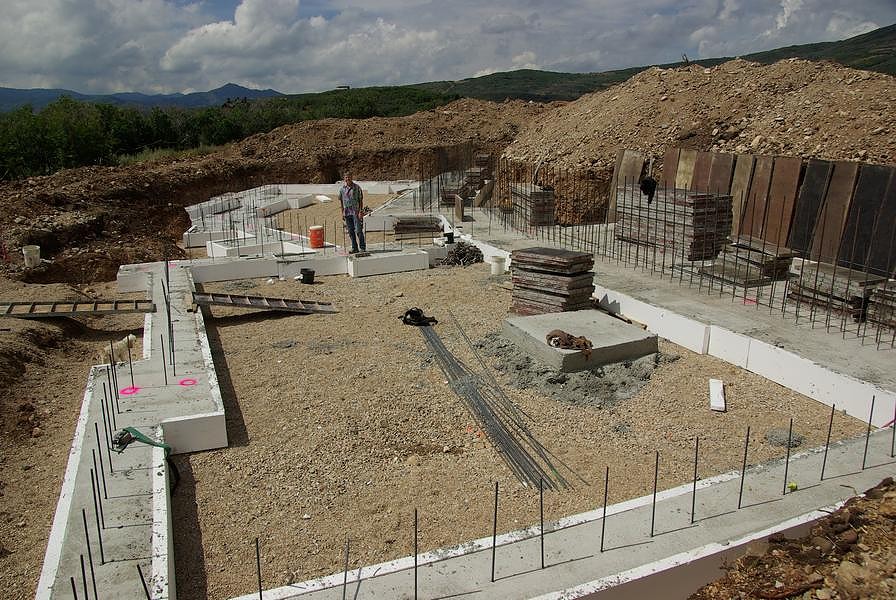

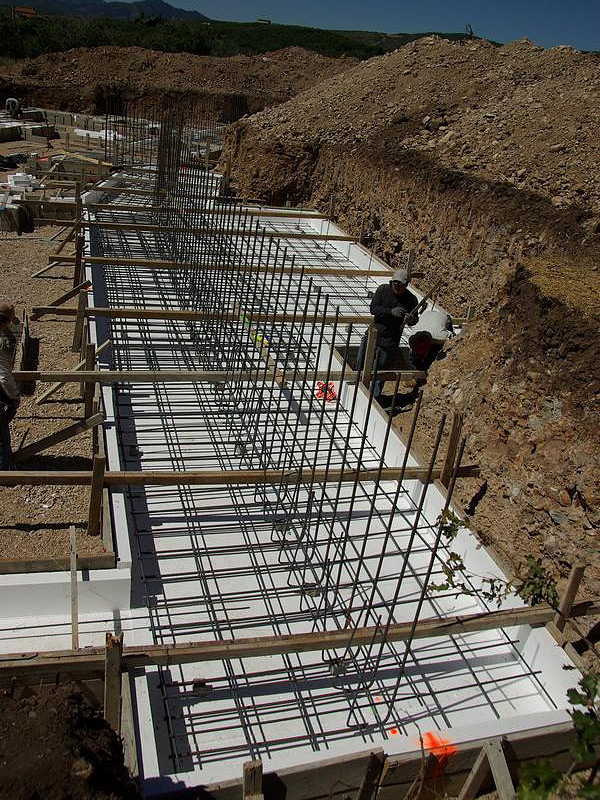

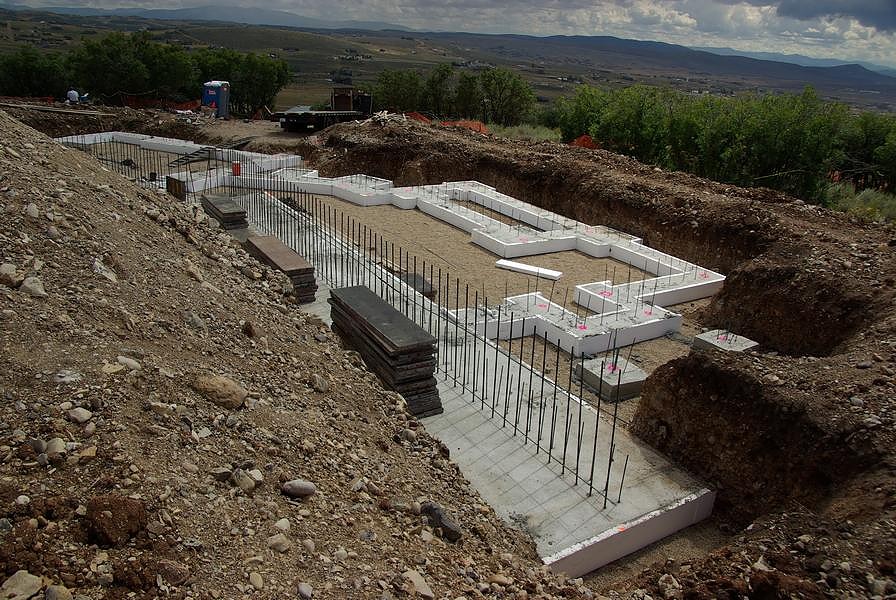

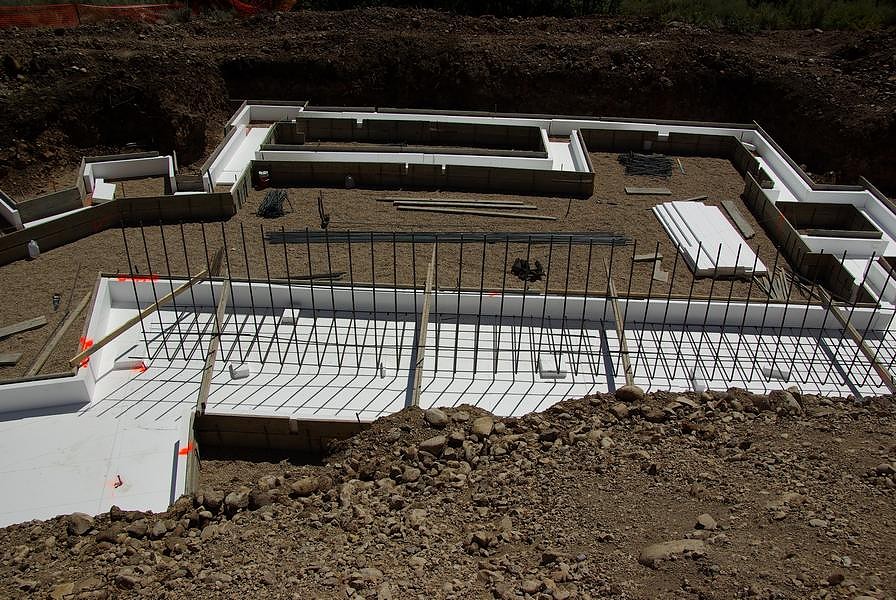

Rebar structure starts for the Wall

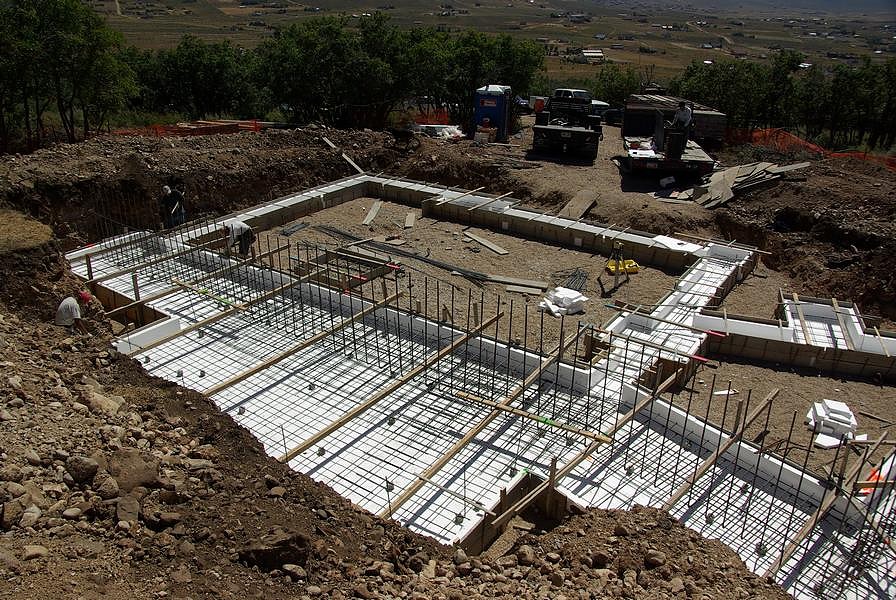

Rebar work continues
Footers positions set by satellite survey technology
Reinforcing forms

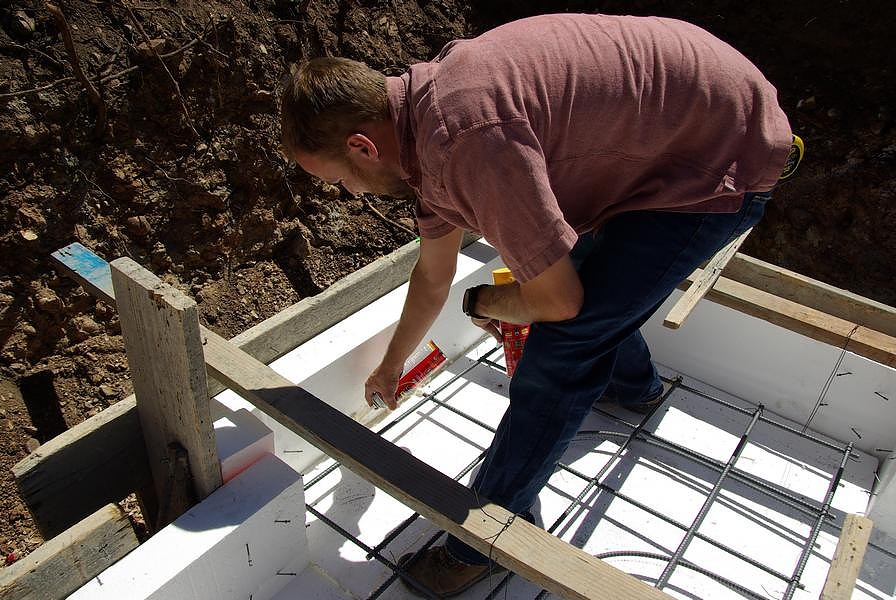

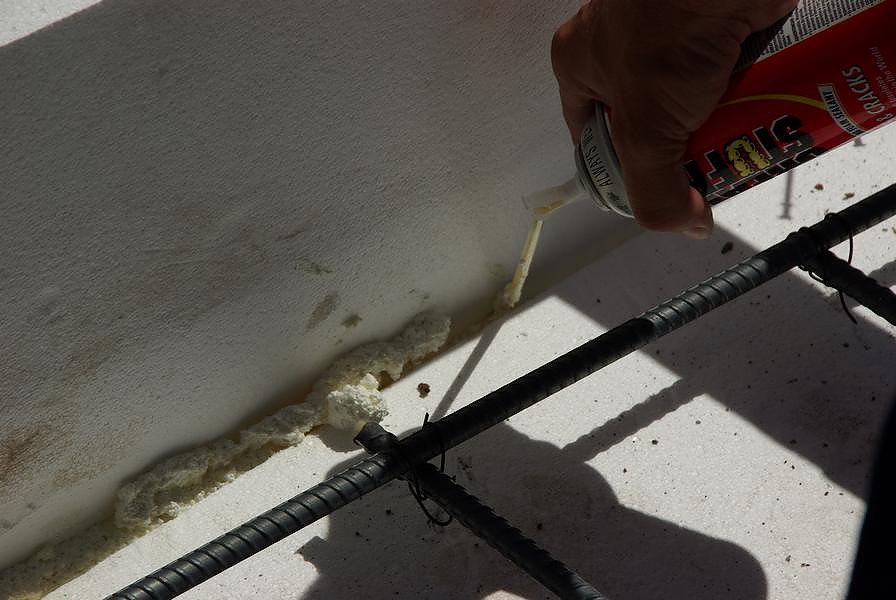

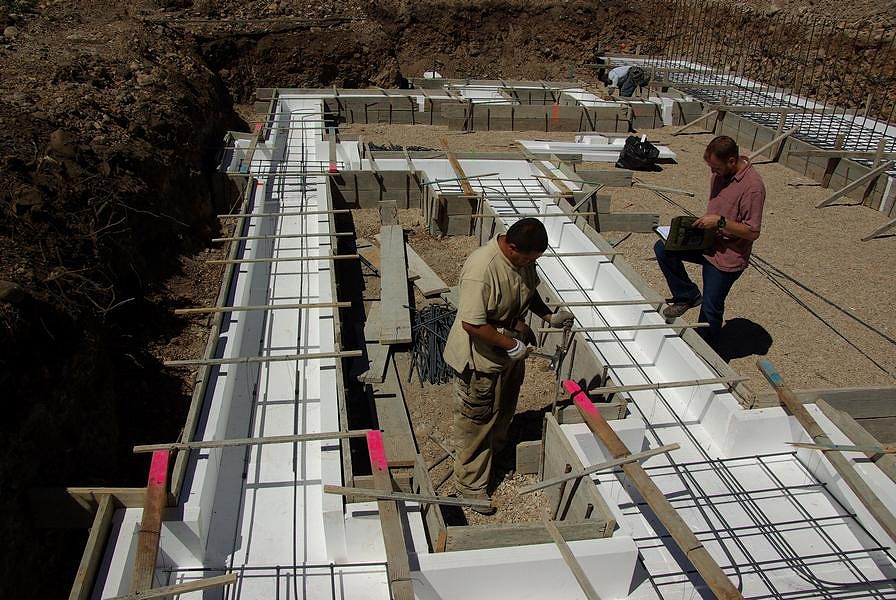

Foaming gaps in EPS forms
Sealing gaps prevent heat sink thermal breaks

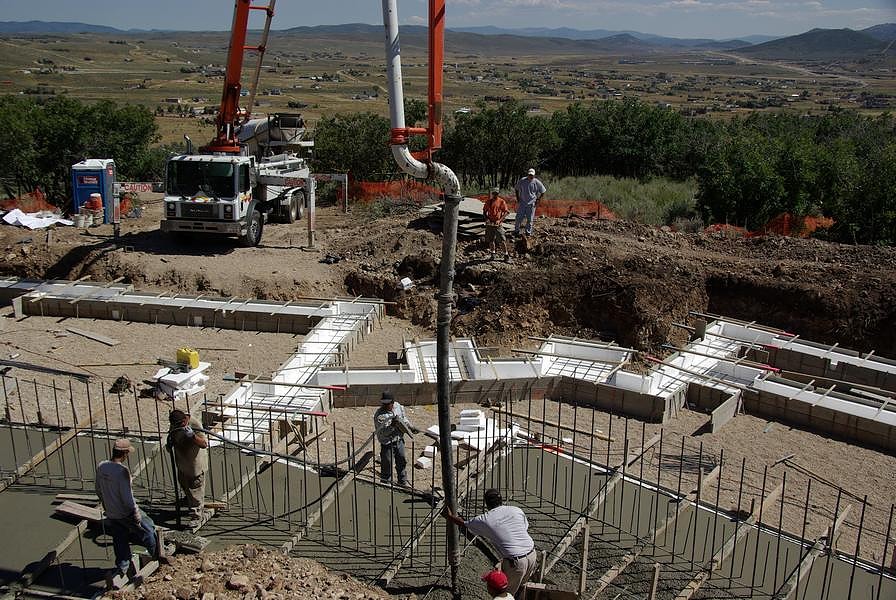

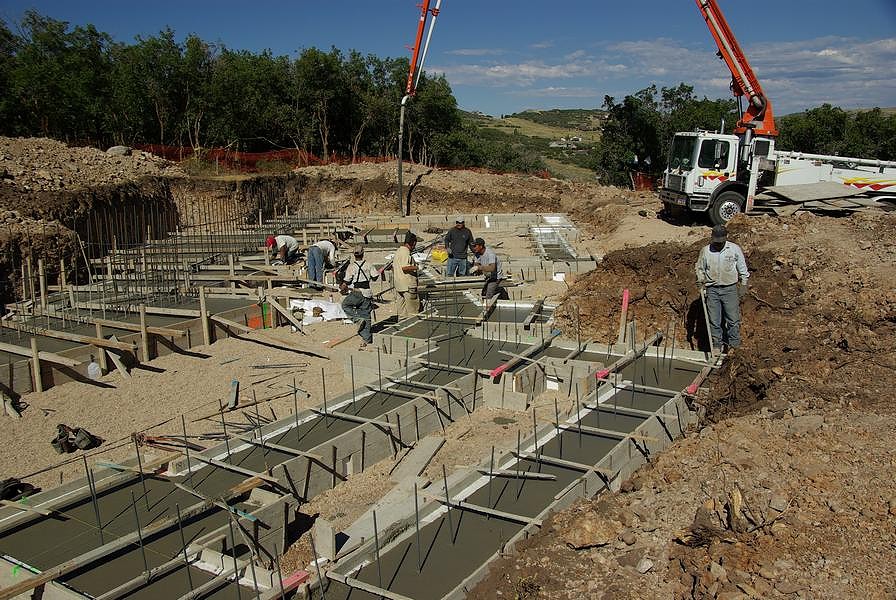

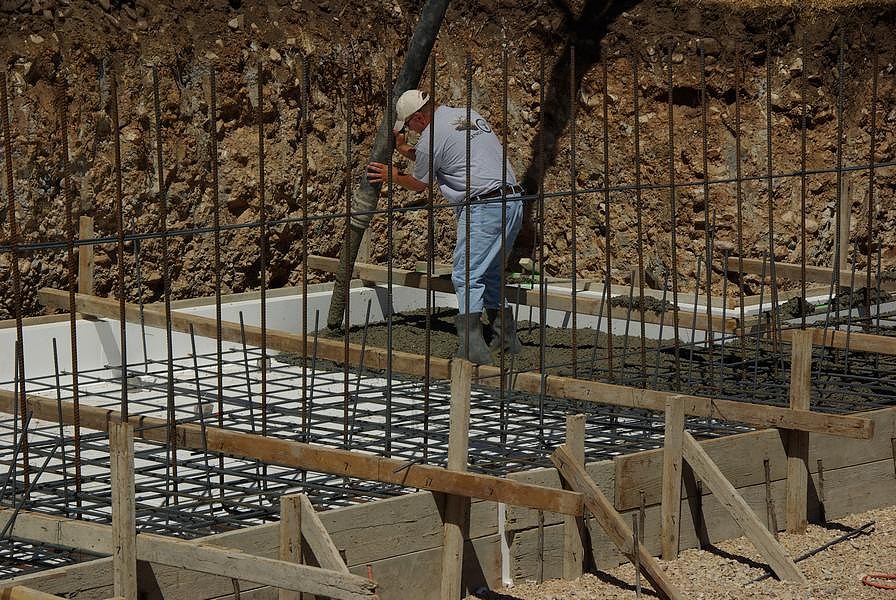

The concrete pours begins!
50% fly ash concrete mixture

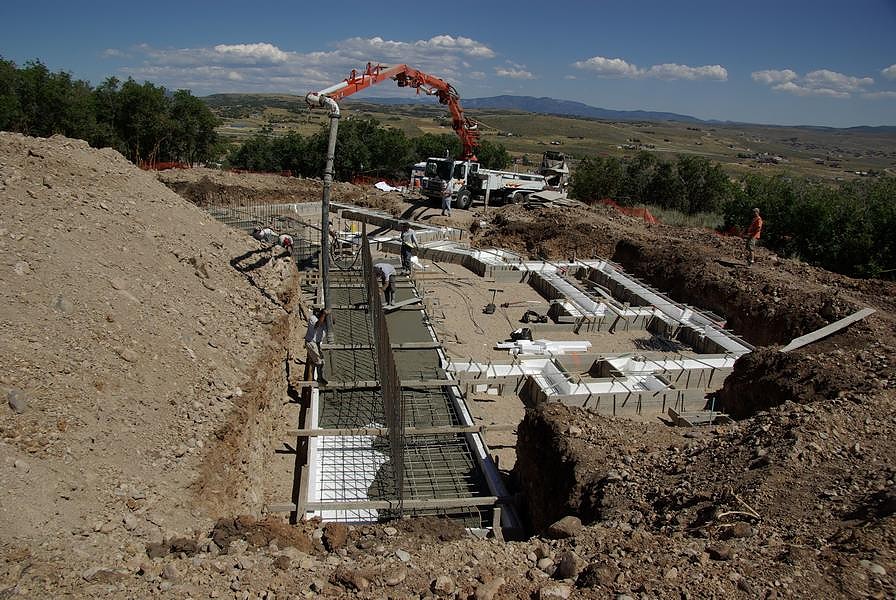

It's a long reach to the far corner
Rebar added while concrete setting for foundation
A total of 7 loads of concrete used

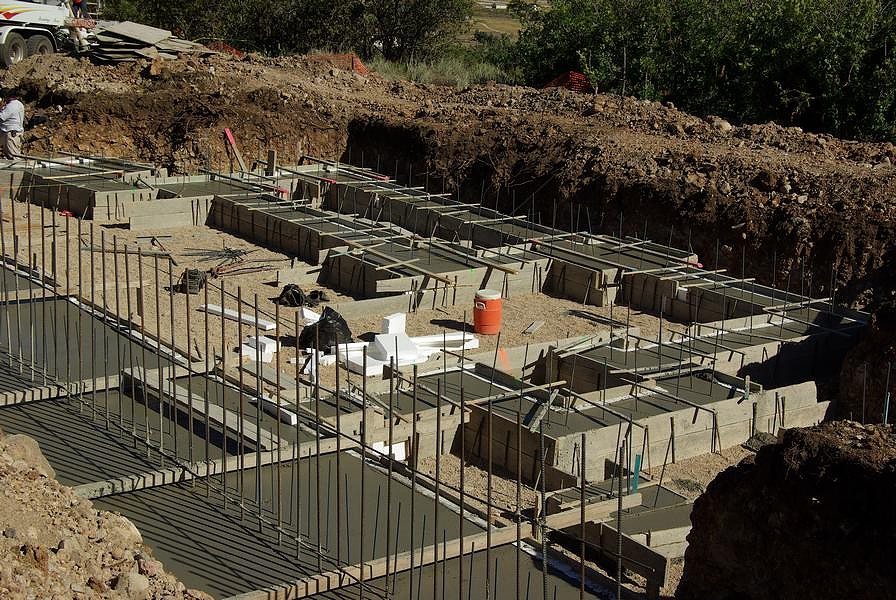

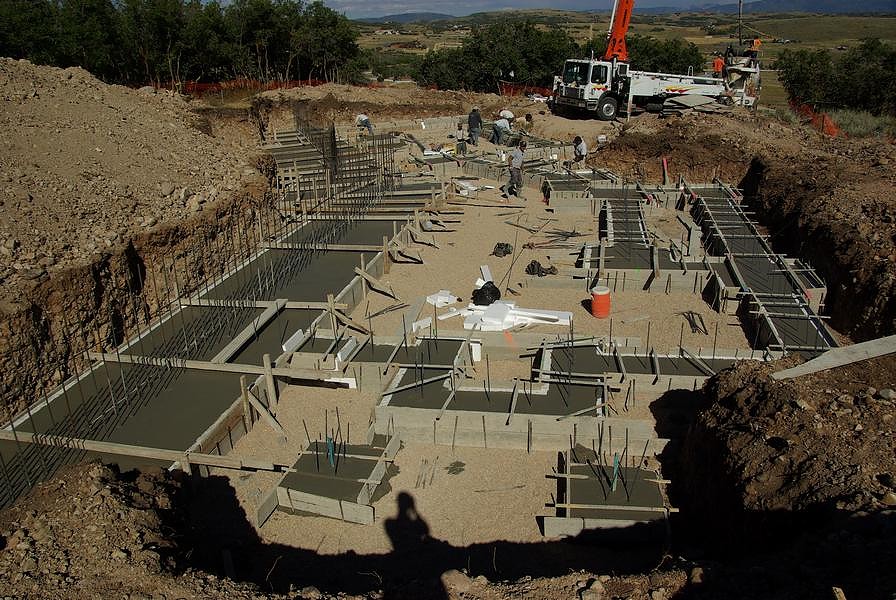

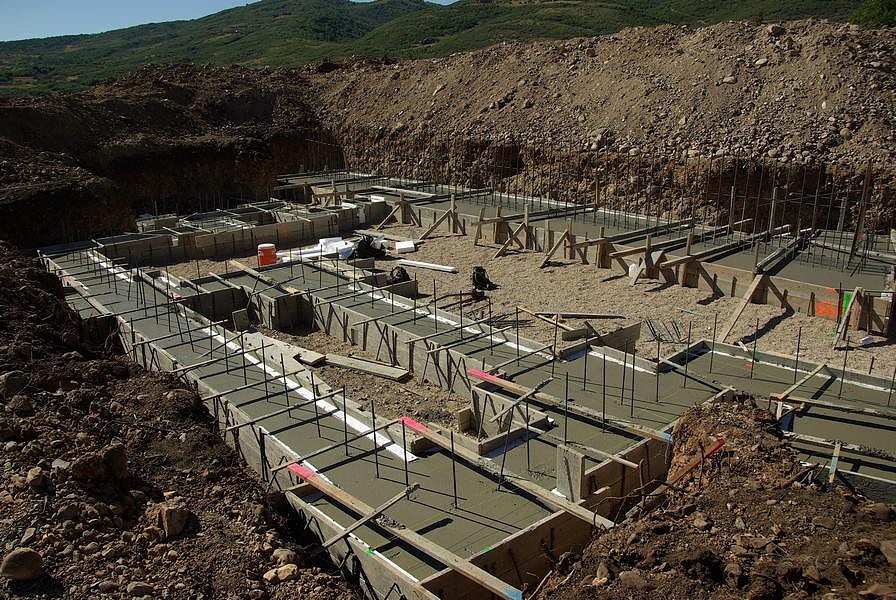

Footers viewed from West
Concrete production responsible for 10% World's CO2 production

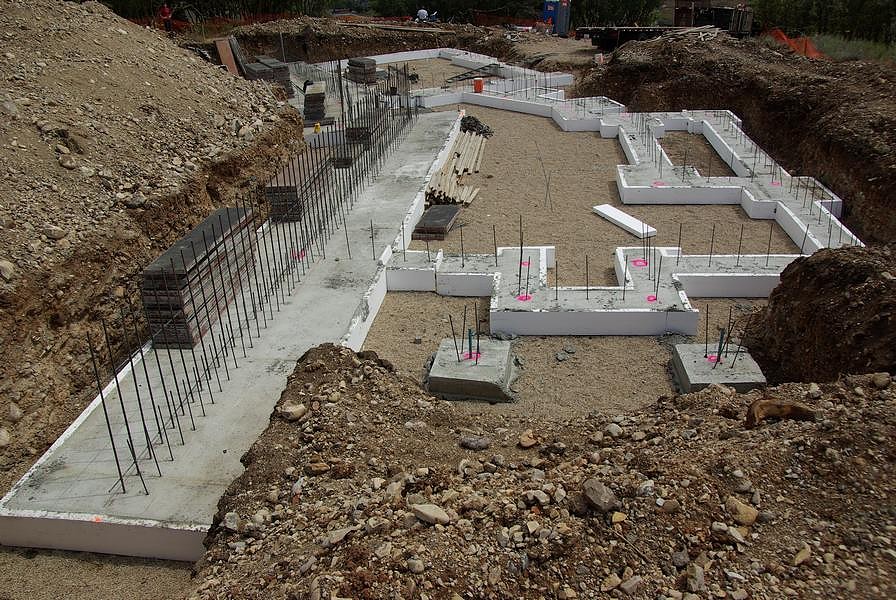

Forms stripped from footers revealing EPS
Forms left in place longer for 50% fly ash concrete
50% fly ash concrete cures twice as strong
The "Wall" forms with PVC tubes for PCM wax
The "Wall" 18 ½ feet tall, over 100 feet long, 16 inches thick

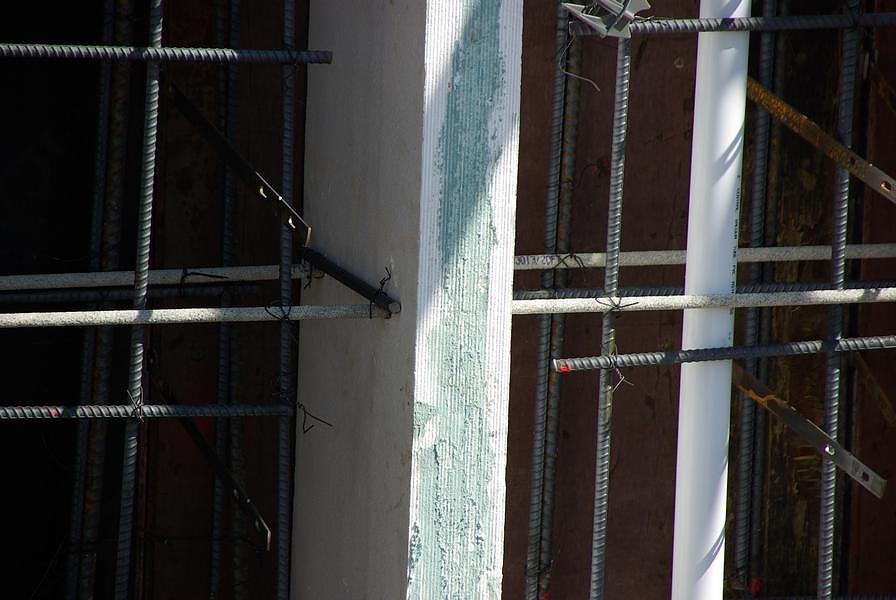

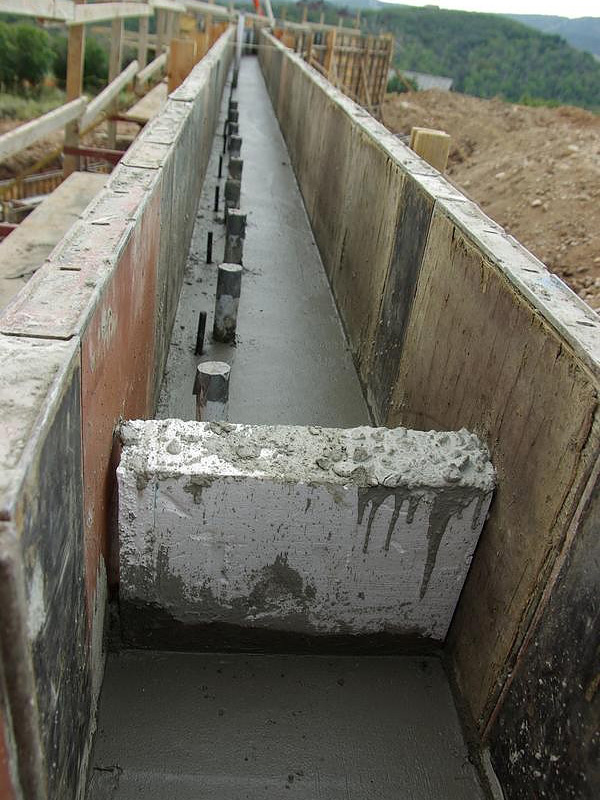

Thermal Break of the "Wall" using plastic rebar and 4 inches EPS

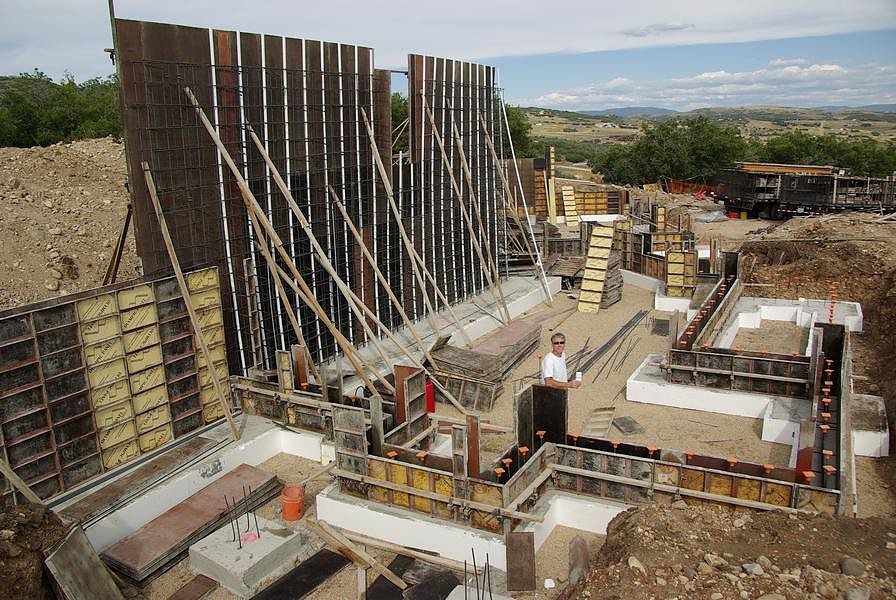

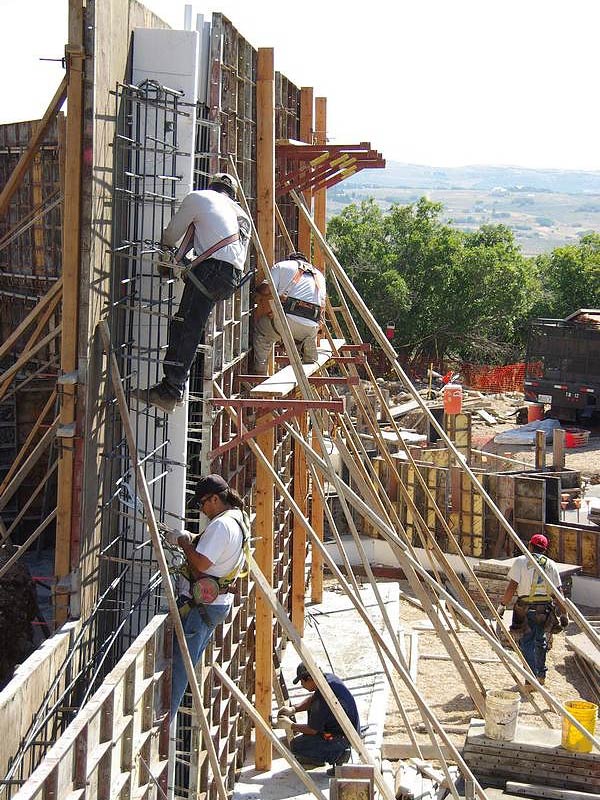

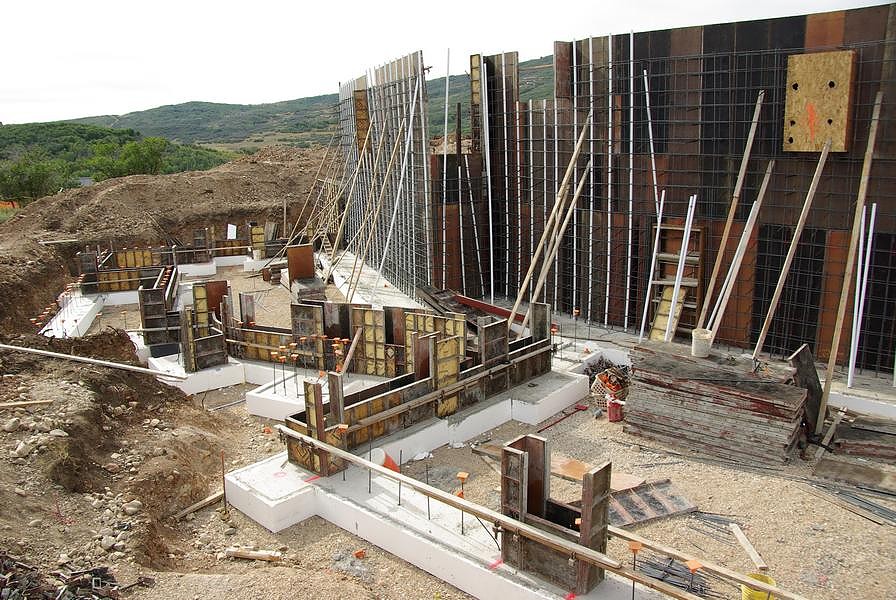

Construction of the "Wall" forms

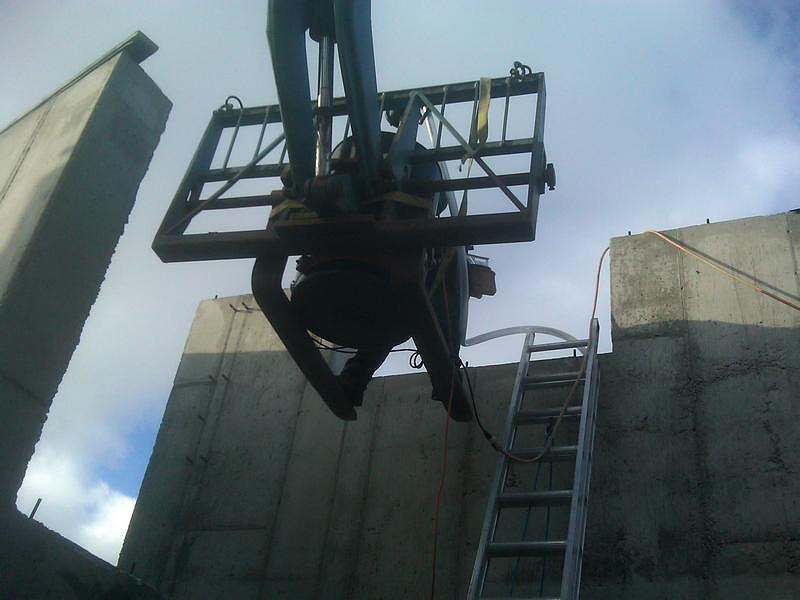

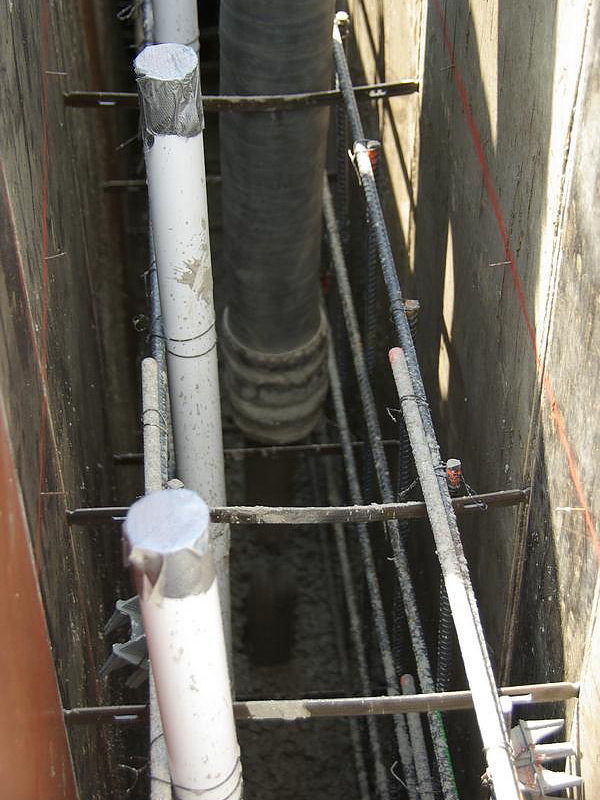

Pouring the "Wall"

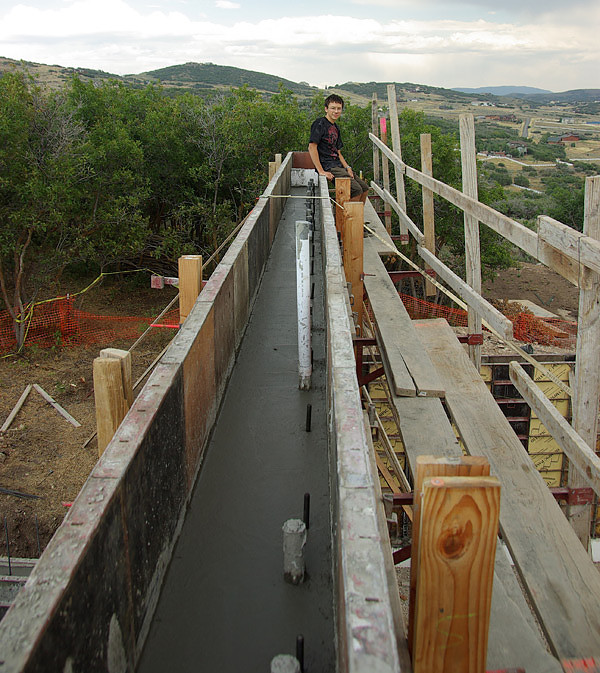

The "Wall" pour finished, no blowouts, EPS thermal break, tubes for PCM wax
Vasily contemplating the thermodynamics of the "Wall"

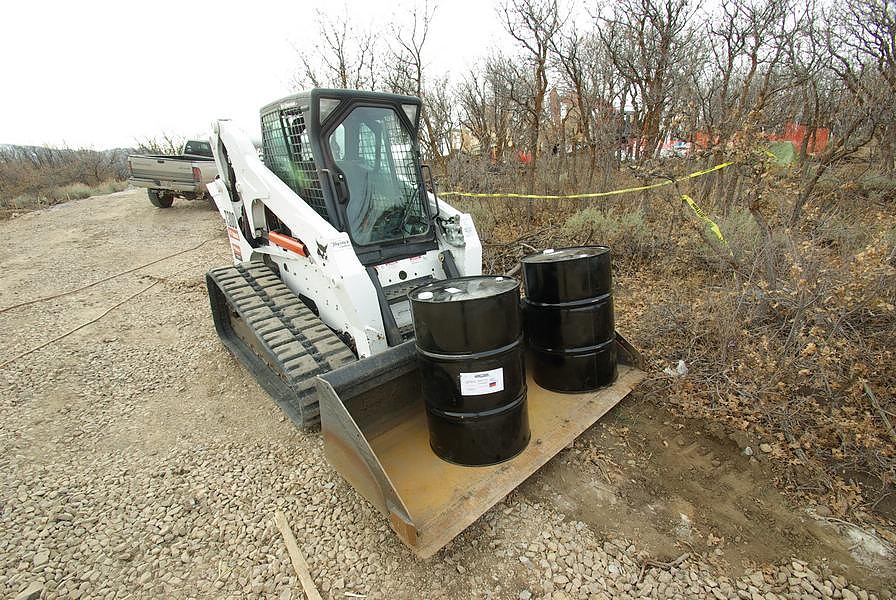

A total of three 55 gallon barrels were used to fill the "Wall"

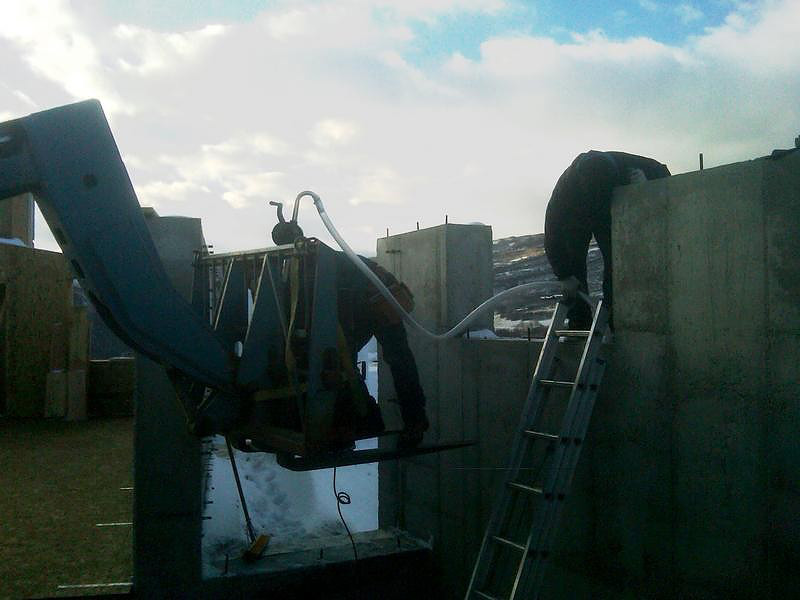

PCM wax being pumped into the "Wall"
The PCM wax holds 3000 BTU's per cubic foot per degree F (100 times that of concrete)

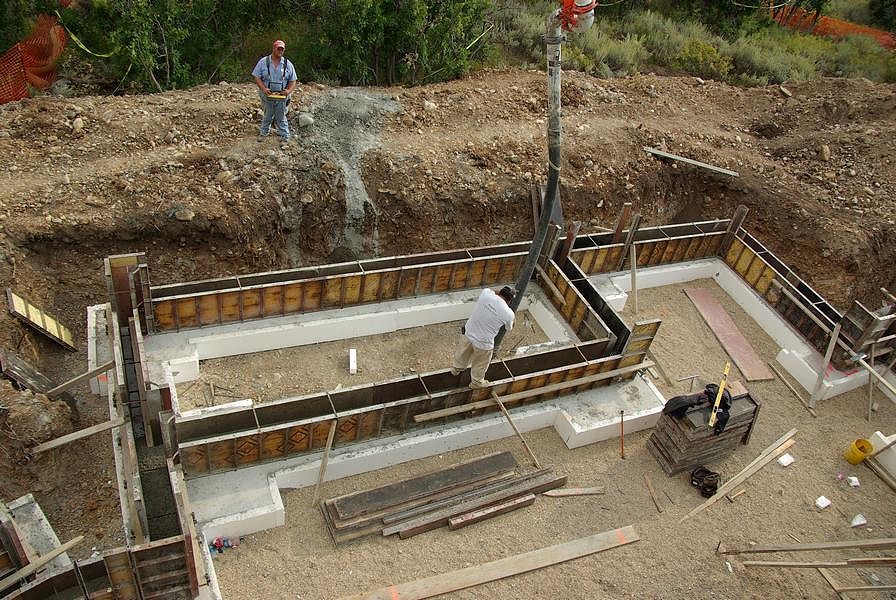

Pouring the foundation walls

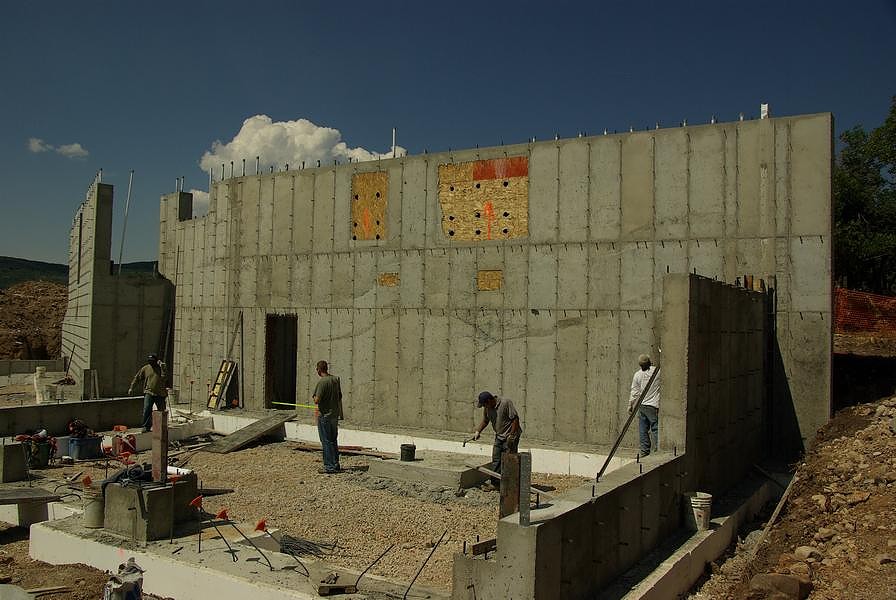

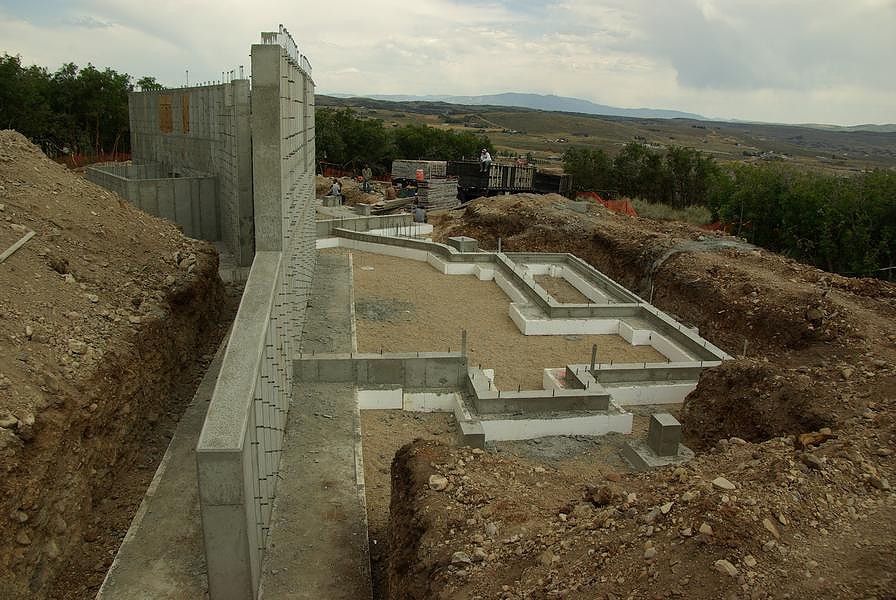

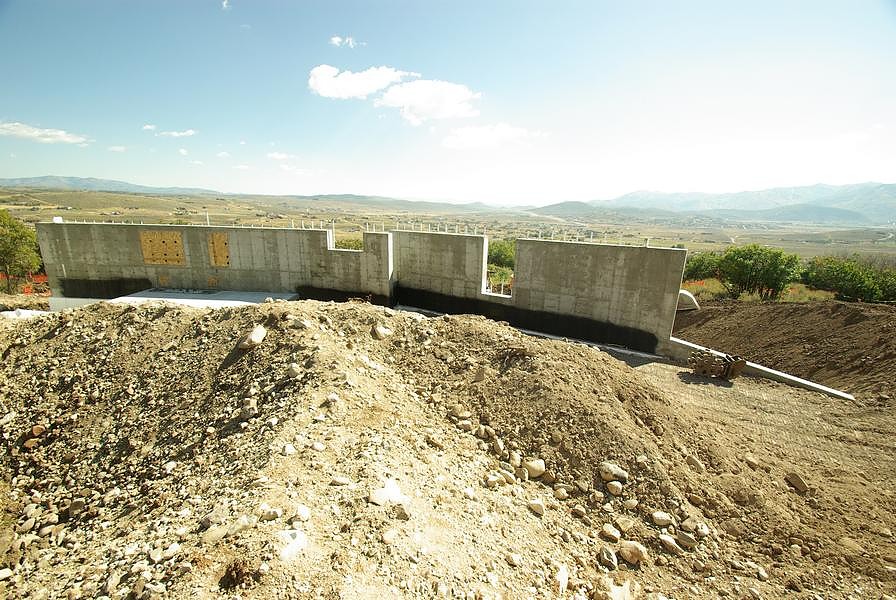

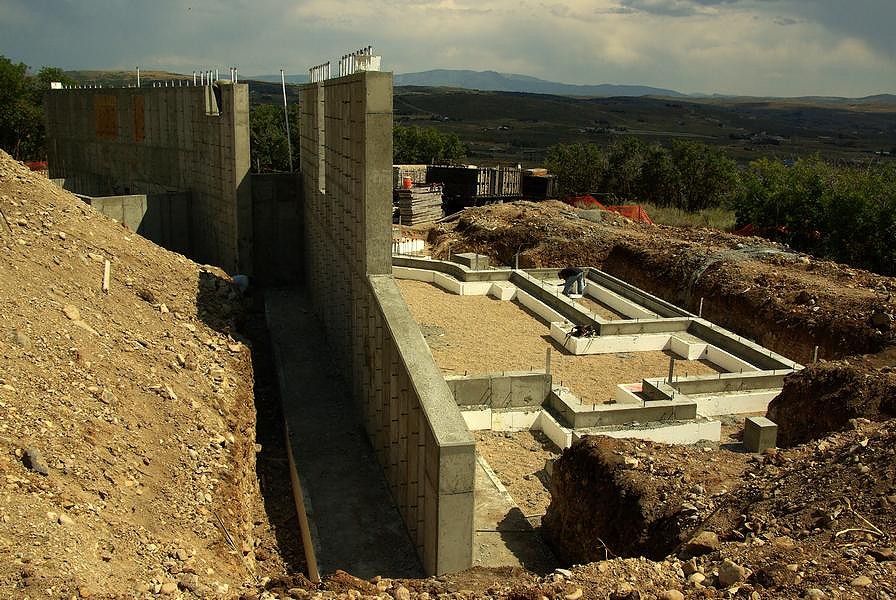

The "Wall" revealed

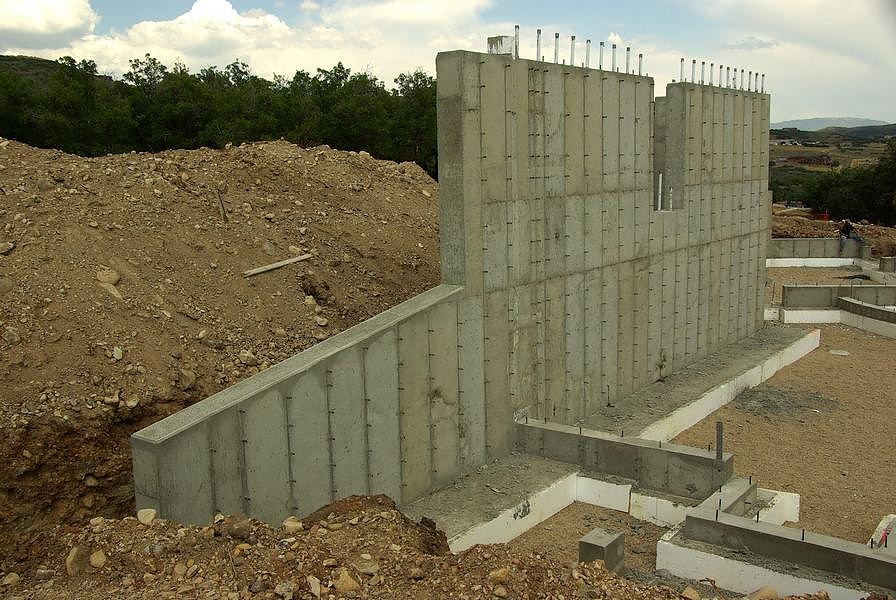

The "Wall" seen from behind
The 'Wall" and foundation required 10 loads of cement
The exposed "Wall" will be made into a climbing wall

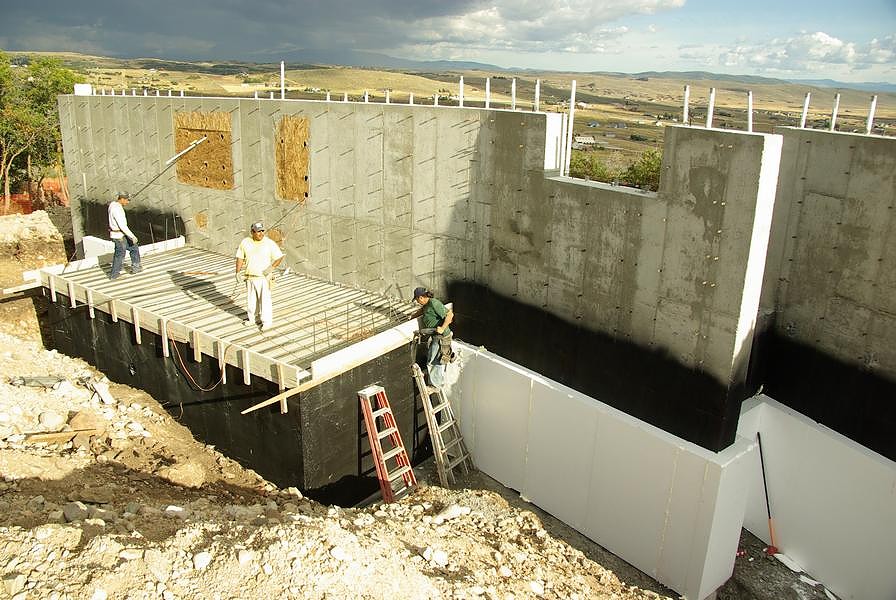

Readying the pour to form the roof of the mechanical room

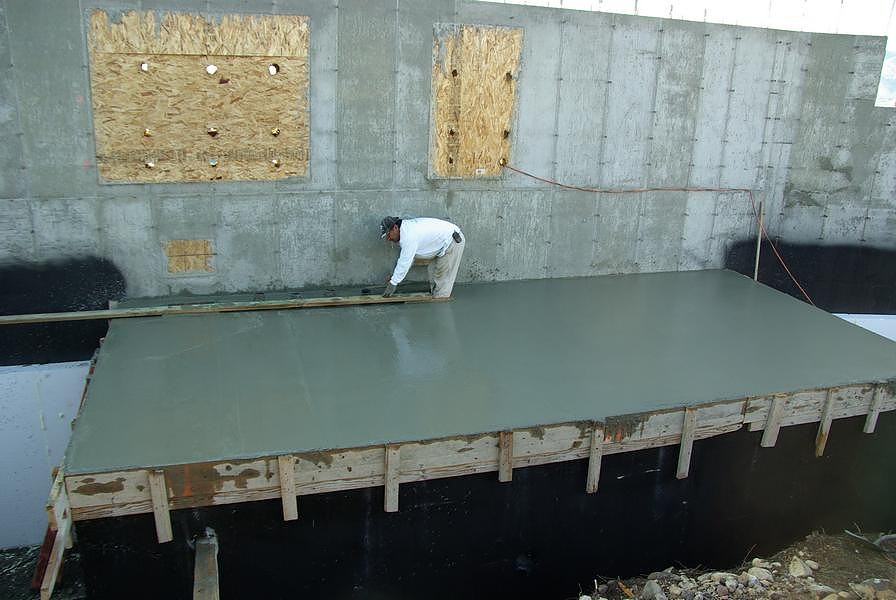

Roof poured with openings for plumbing, electrical, HRV etc

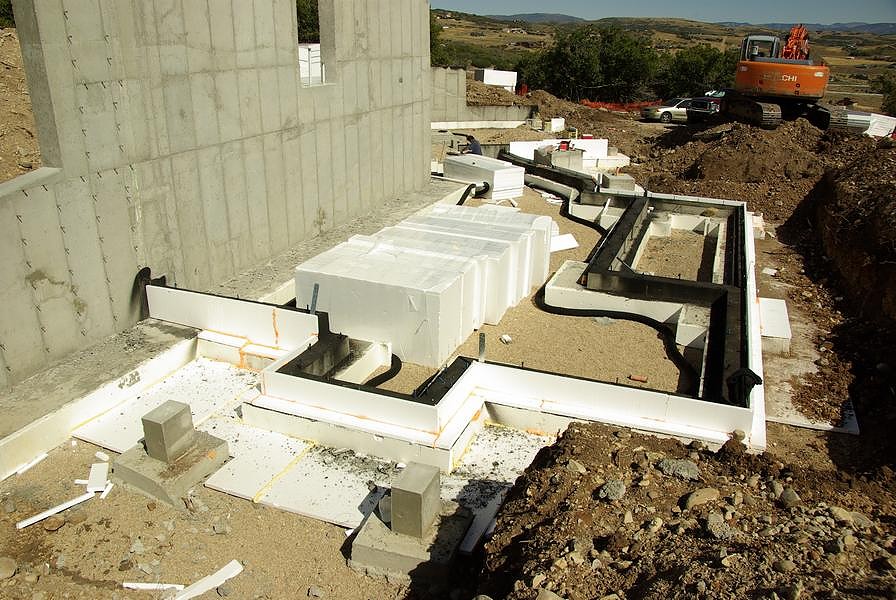

Wing insulation for Shallow Depth Frost Protected (SDFP) footers
Back Filling over SDFP wing insulation, 10 inches

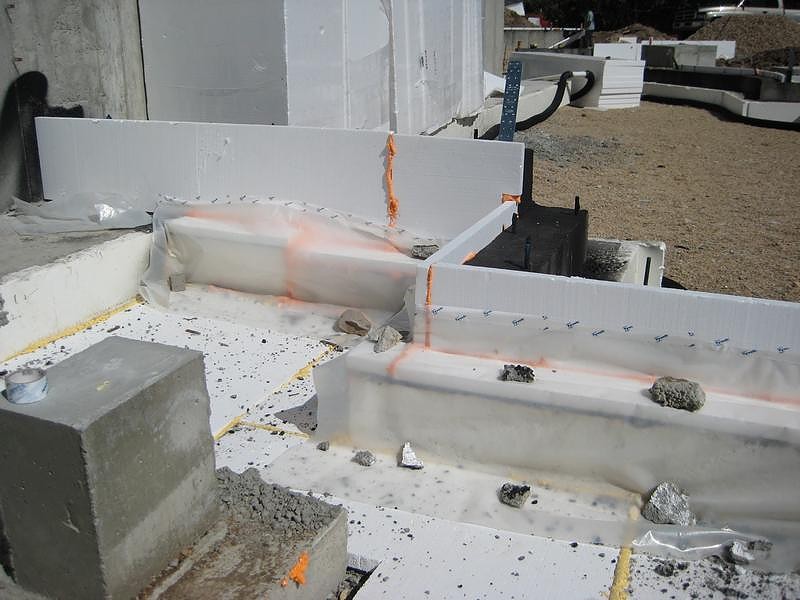

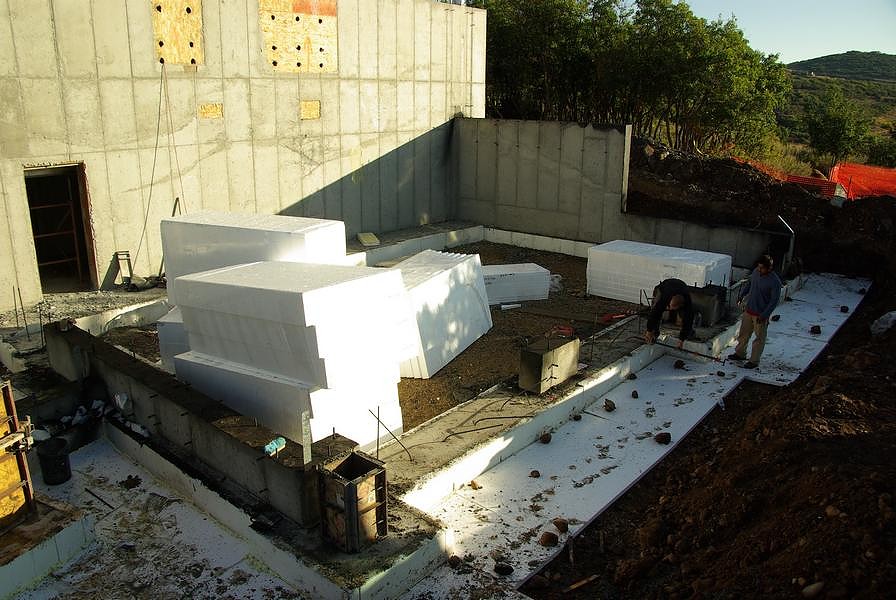

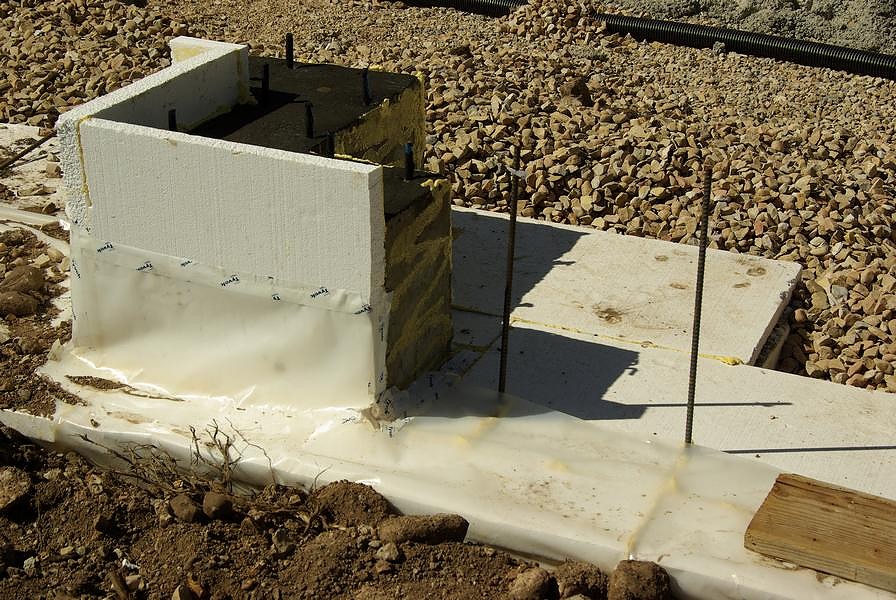

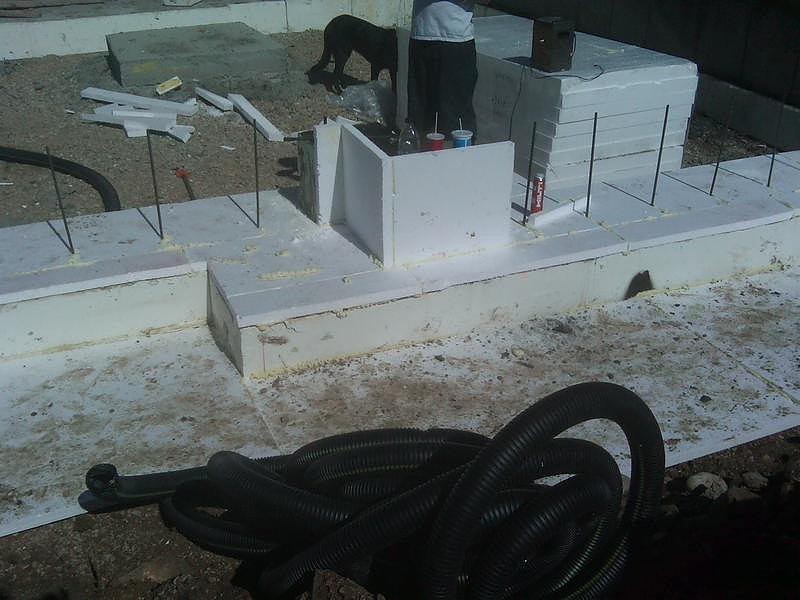

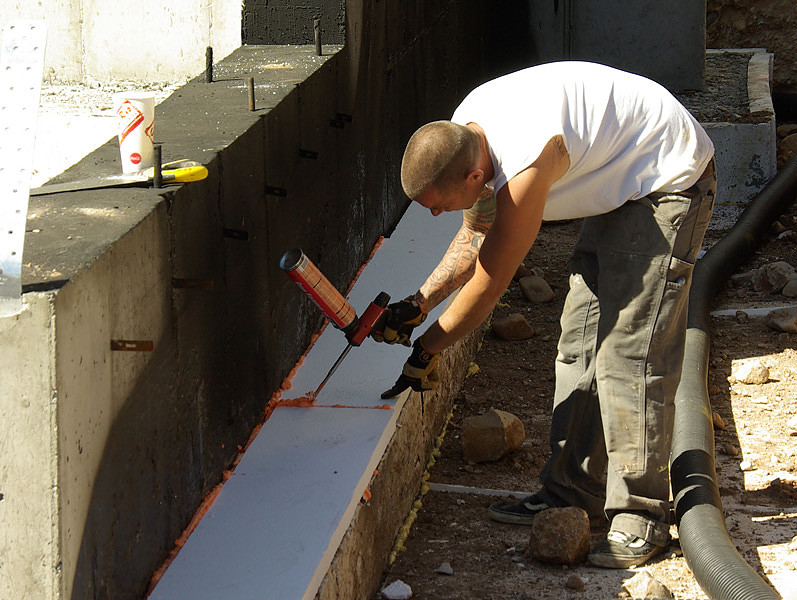

Todd adding EPS to the top of the footers and sealing gaps

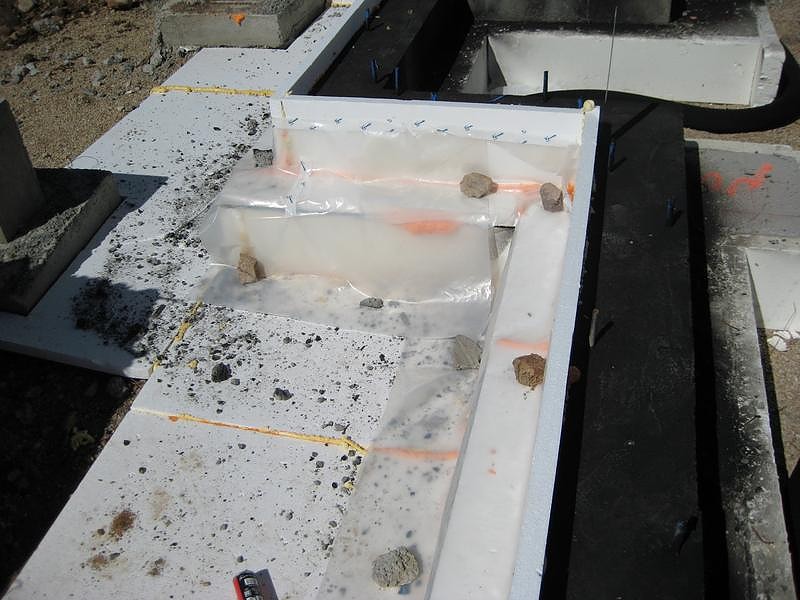

Vapor barrier atop the insulated footers

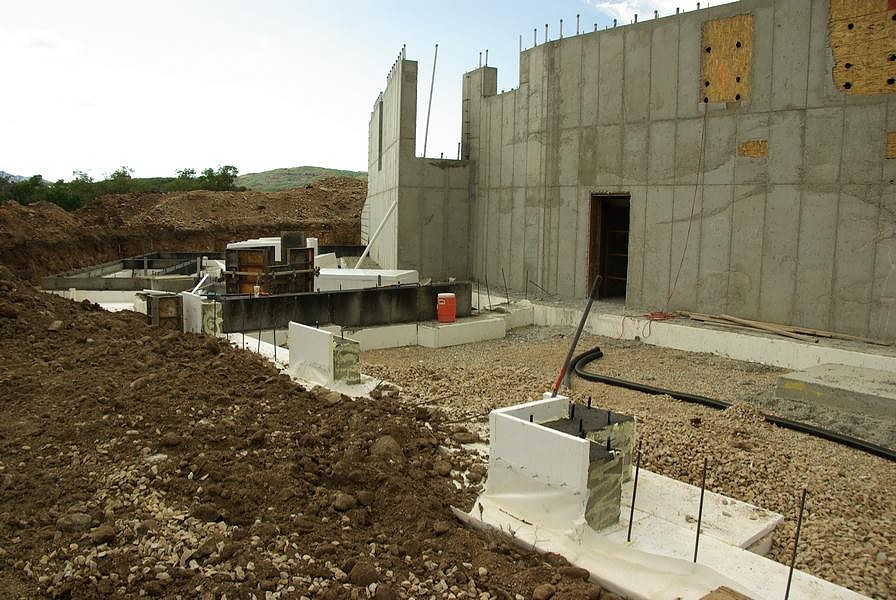

Foundation and wing insulation, Radon mitigation tubing

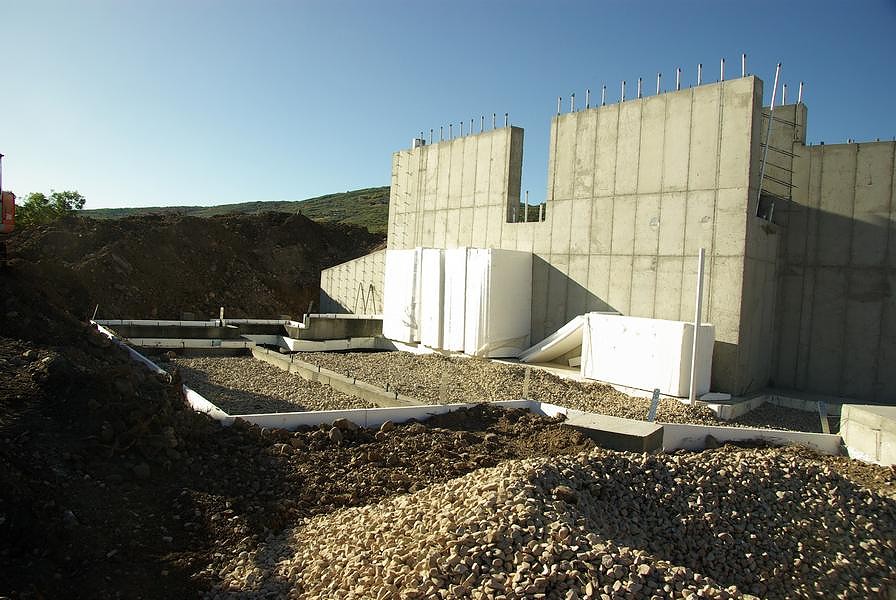

Gravel infill prior to adding 8 inches EPS (R32)

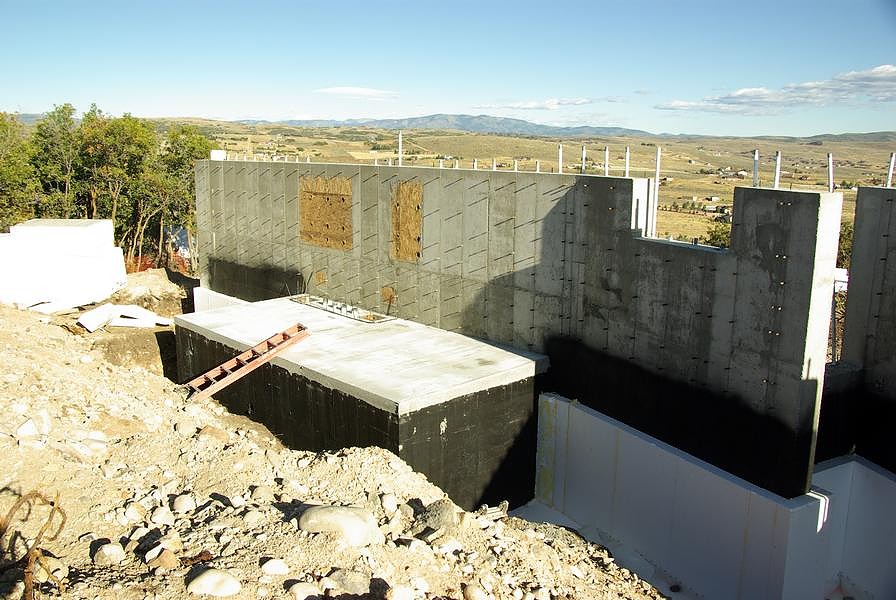

Mechanical room, polymer based waterproofing, Ecobase
Wing insulation sealed, vapor barrier in place, Ecobase atop foundation, Radon tubing
Insulation atop garage foundation
Wing insulation, insulated footers/foundation with vapor barrier and Ecobase sealing
8 inches EPS (R32) added to exterior of the "Wall" below frost line

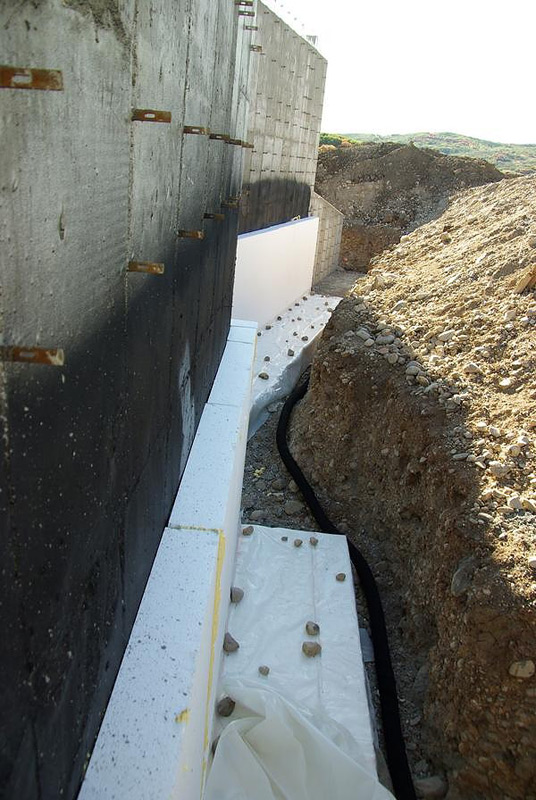

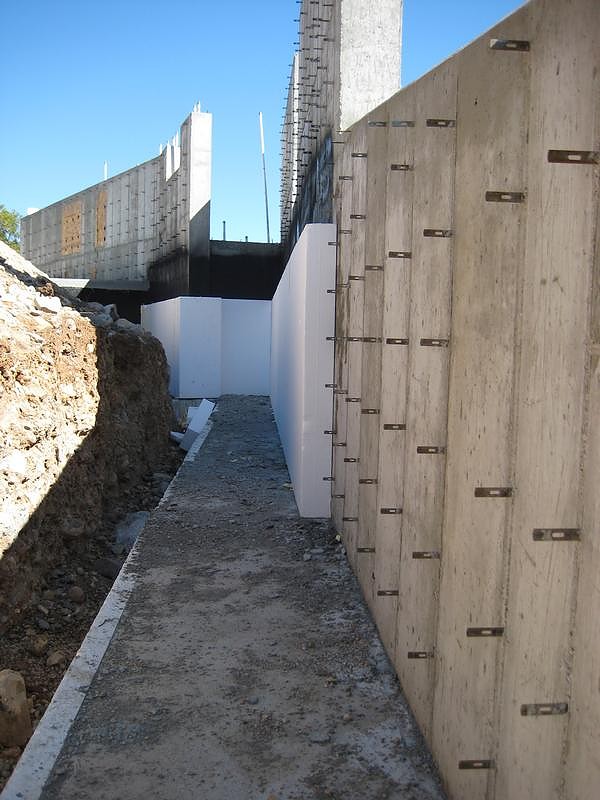

"Wall" insulation, footers with 4 inches EPS and Vapor barrier, French drain
Garage floor drains

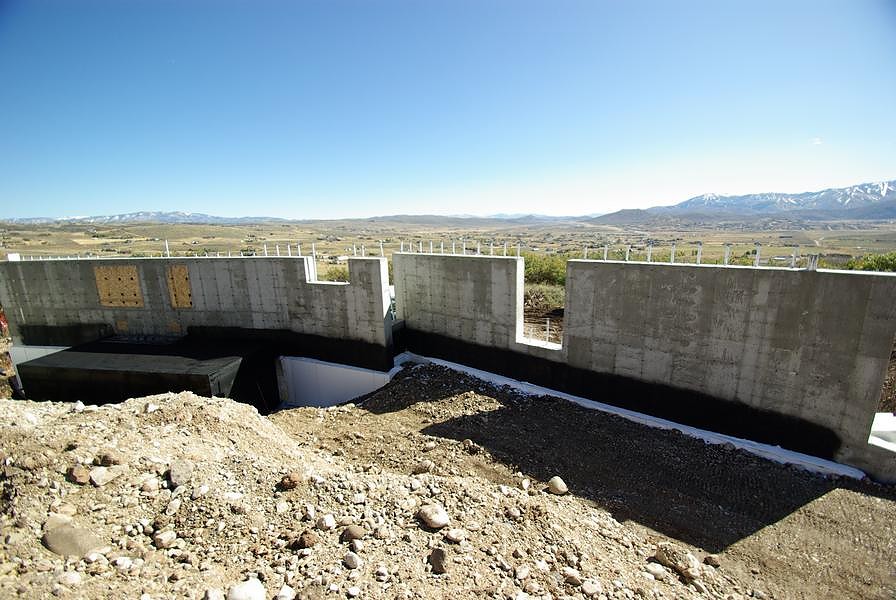

The "Wall" from behind

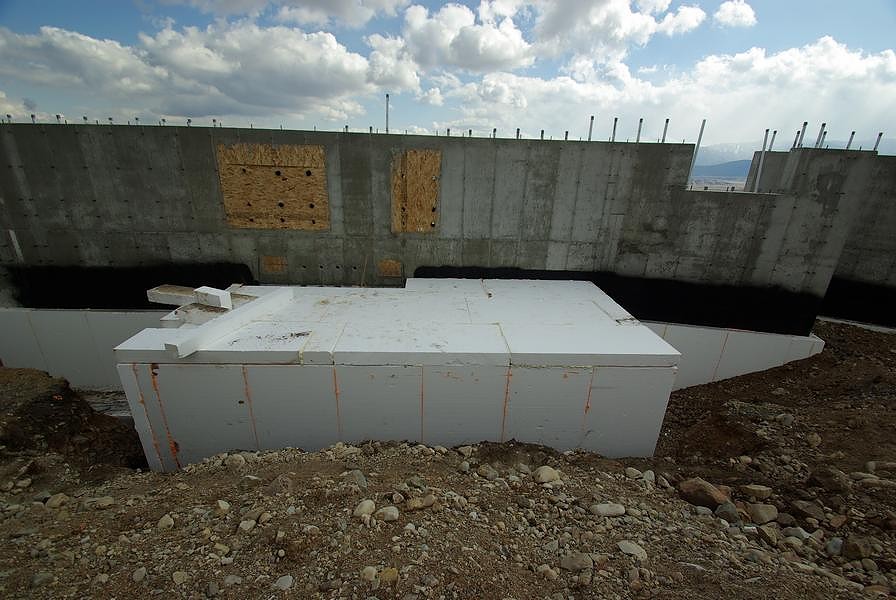

Mechanical room Ecobase sealed and ready for 12 inches EPS

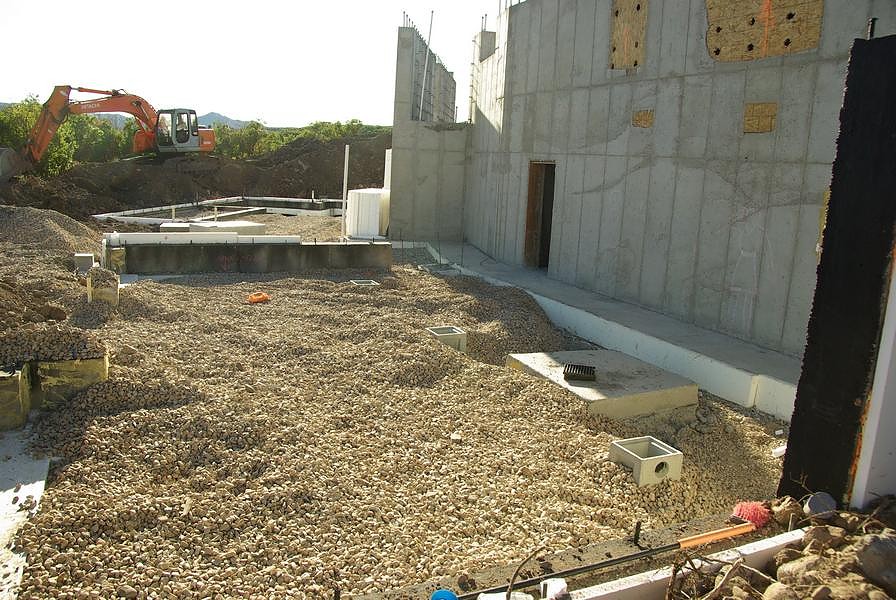

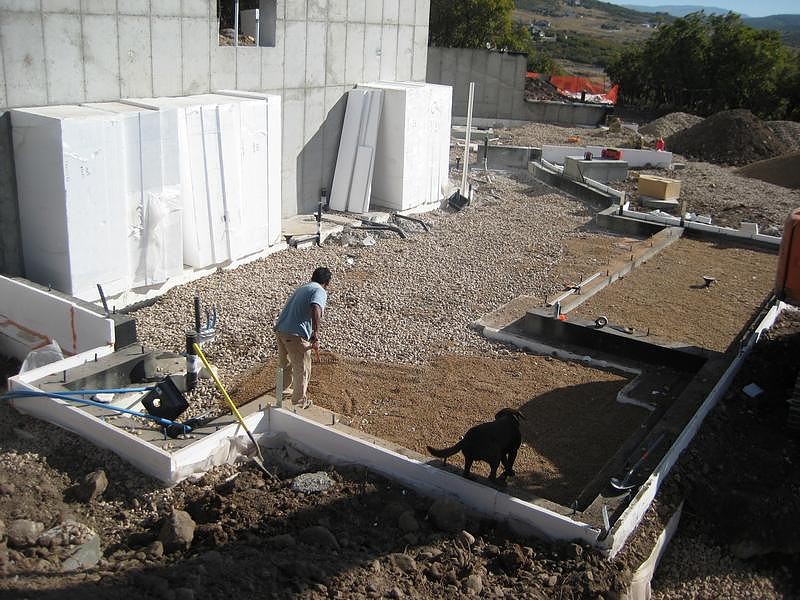

Plumbing drains in place, fine gravel infill

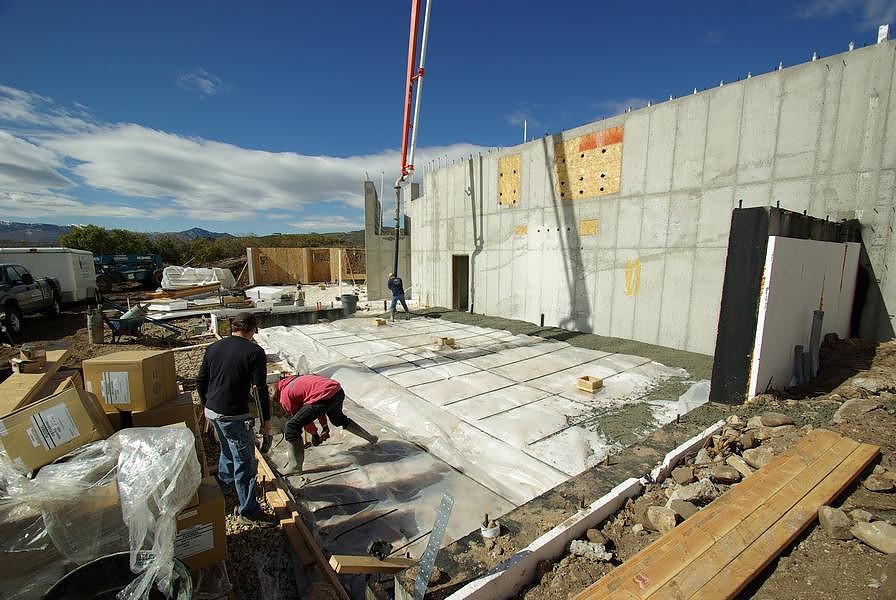

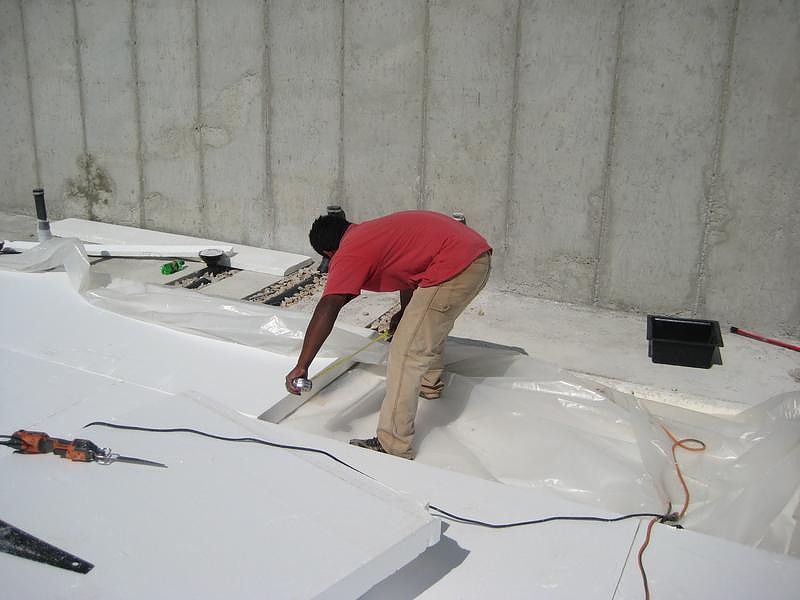

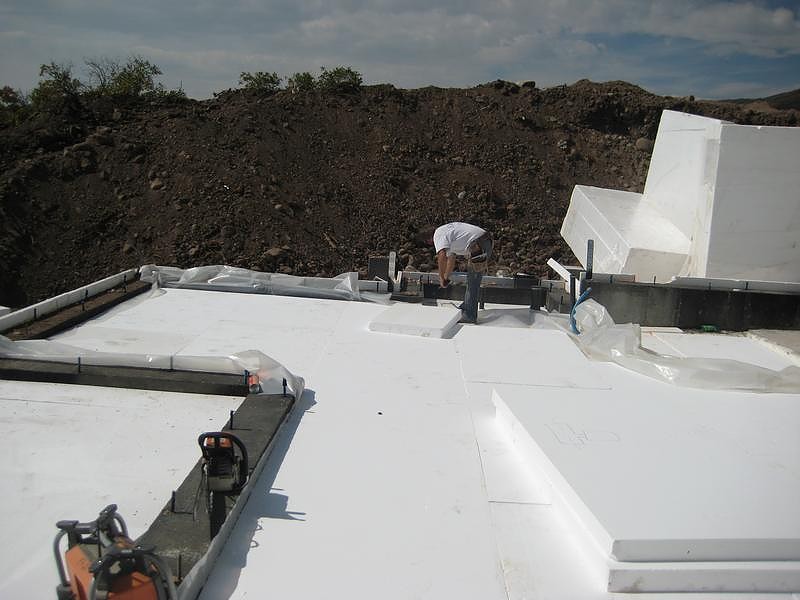

Laying down two 4 inch layers of EPS (R32) with vapor barrier between
Concrete cuts for drains in footers will be covered with 4 inches EPs

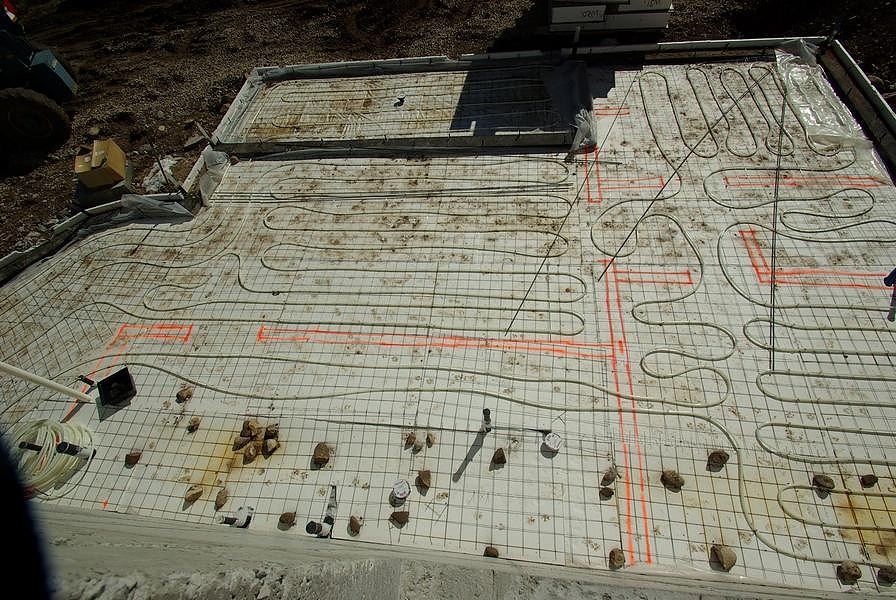

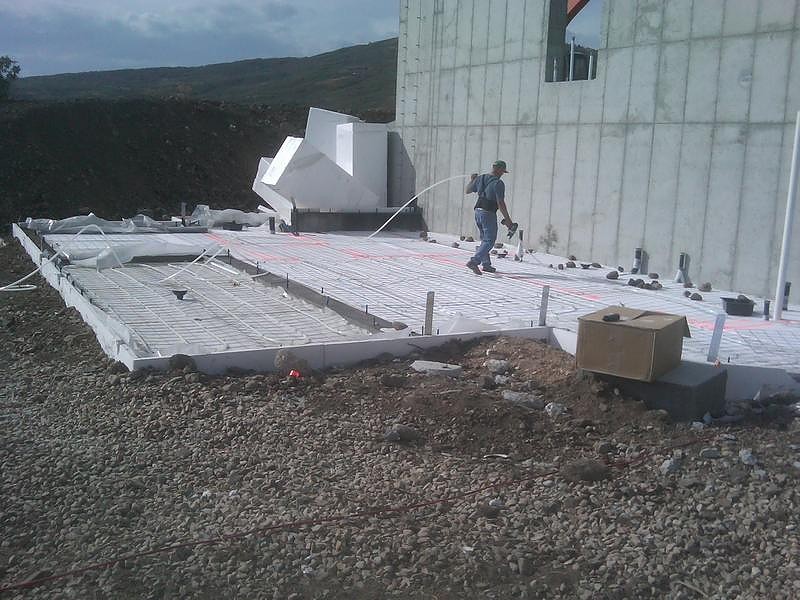

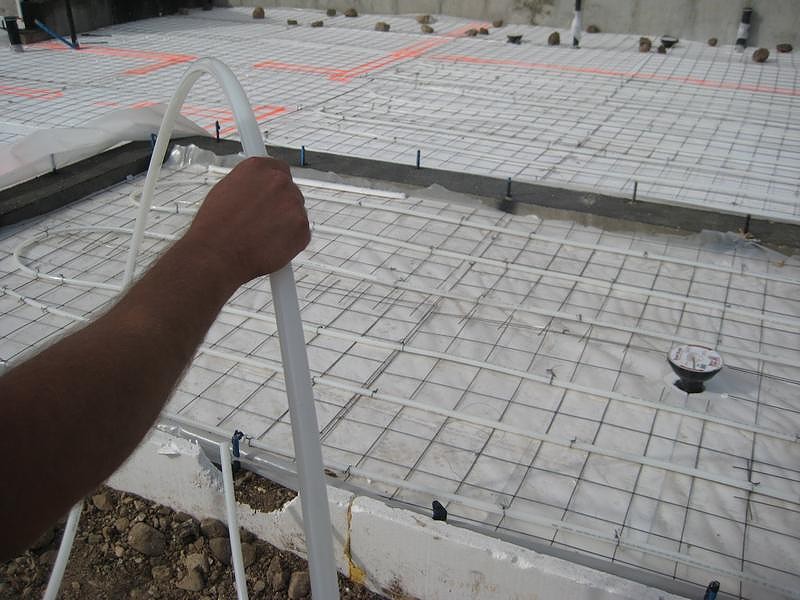

Installing radiant heat tubing
Tubing attached to metal grid work

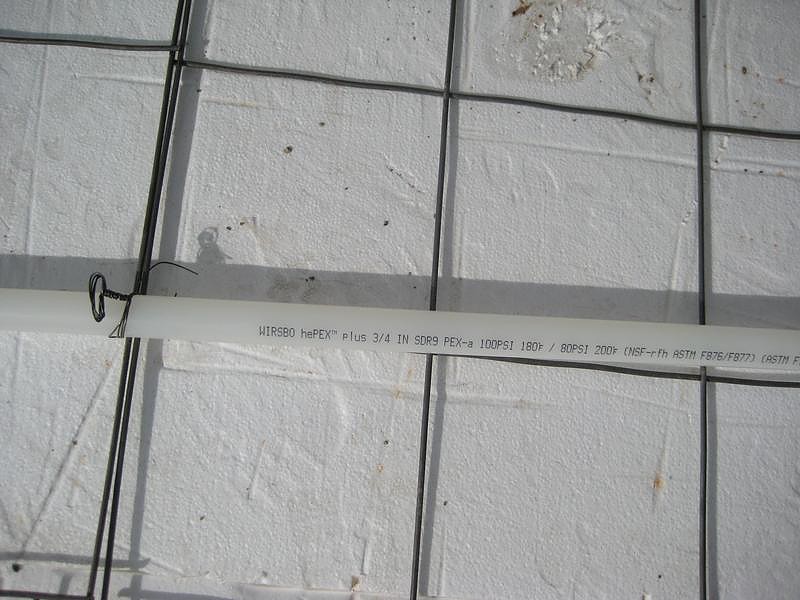

Larger diameter tubing (3/4") to decrease flow restrictions

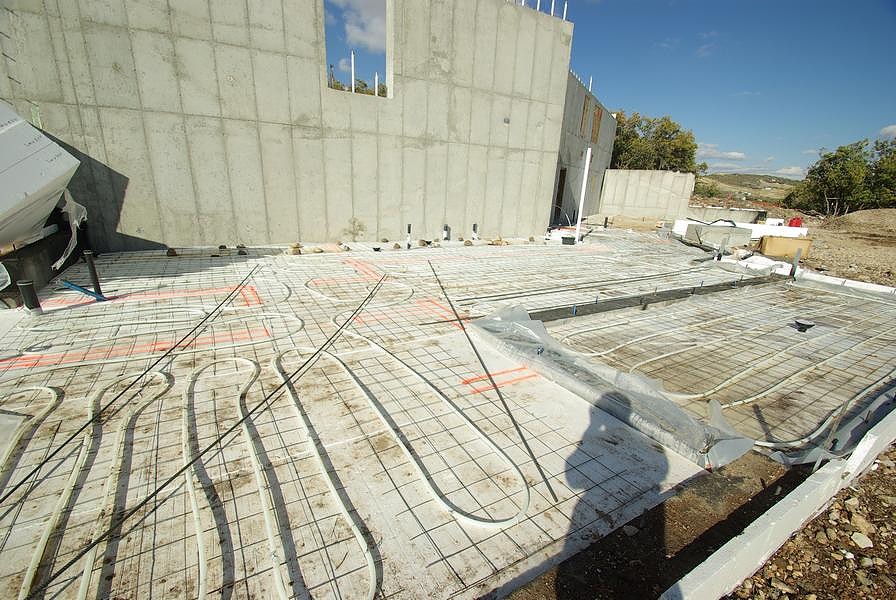

Tubing in place, oversized couplers used
Tubing with wall placement, spray painted on
Mechanical Room with 12 inches EPS (R48) installed

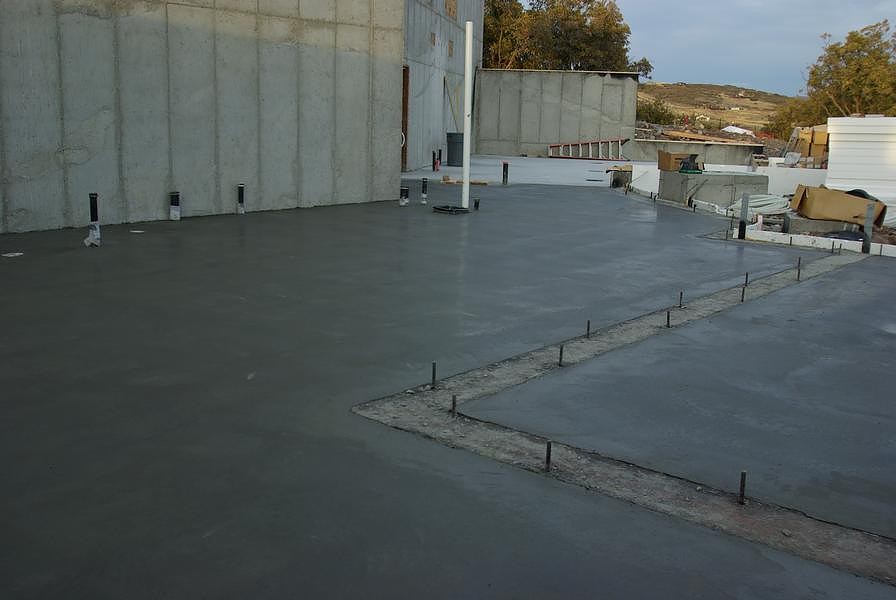

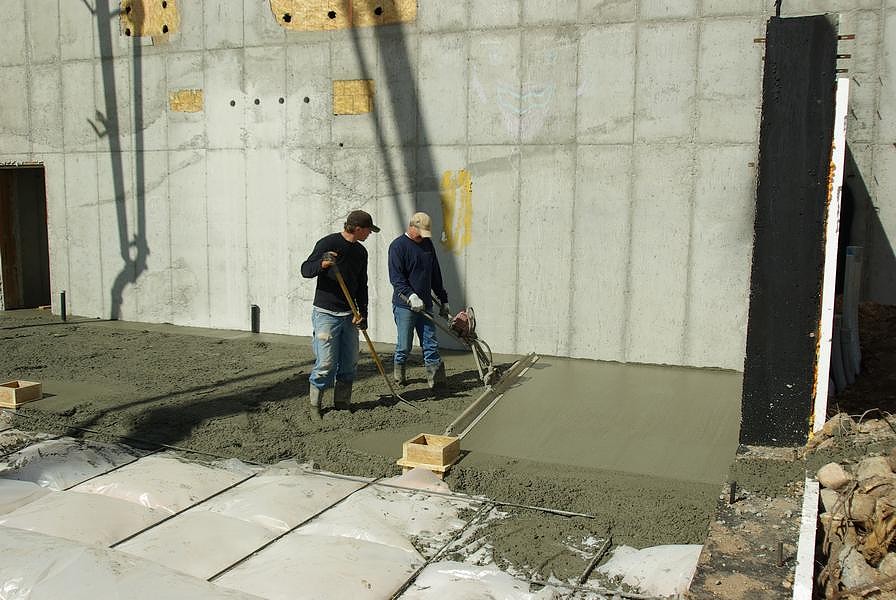

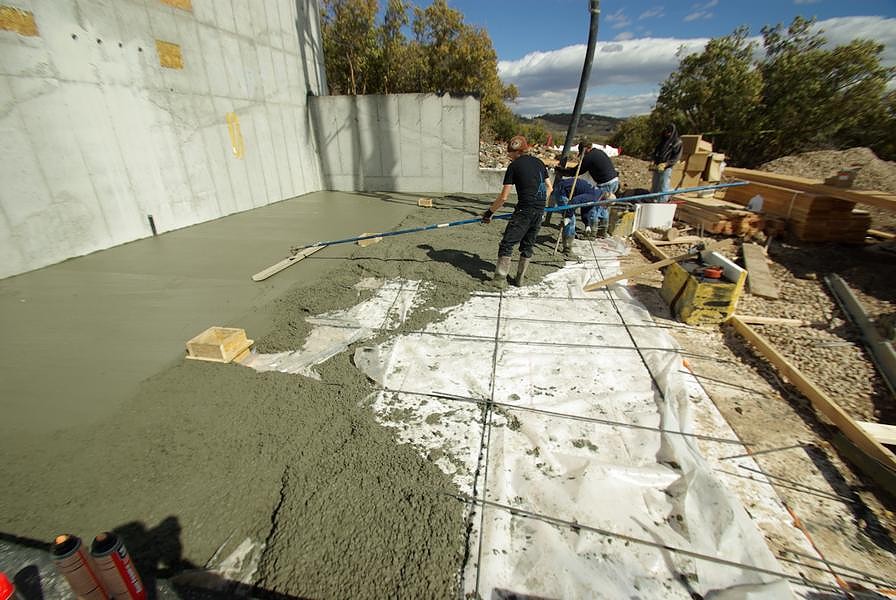

Garage floor cement pour, rebar and vapor barrier

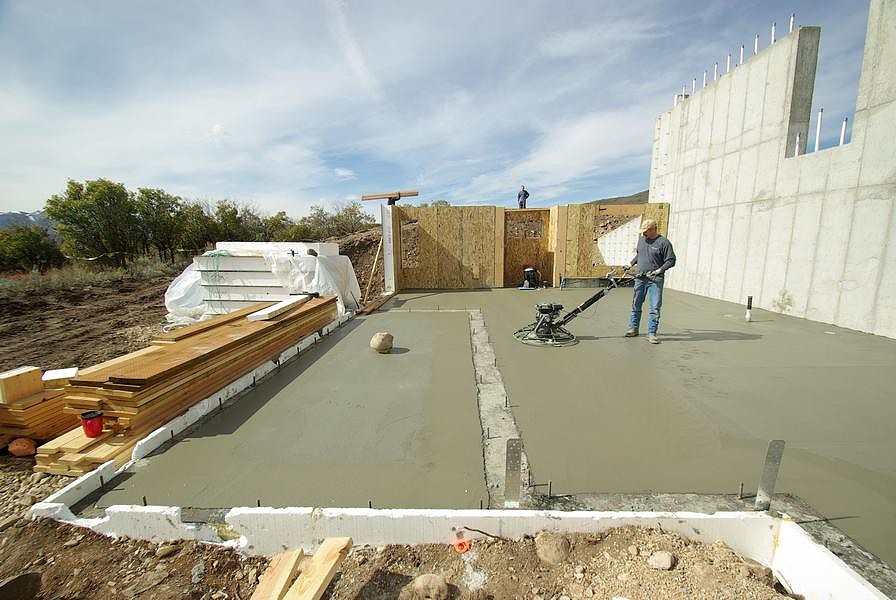

Using power trowel to smooth concrete
Creating slope to drains

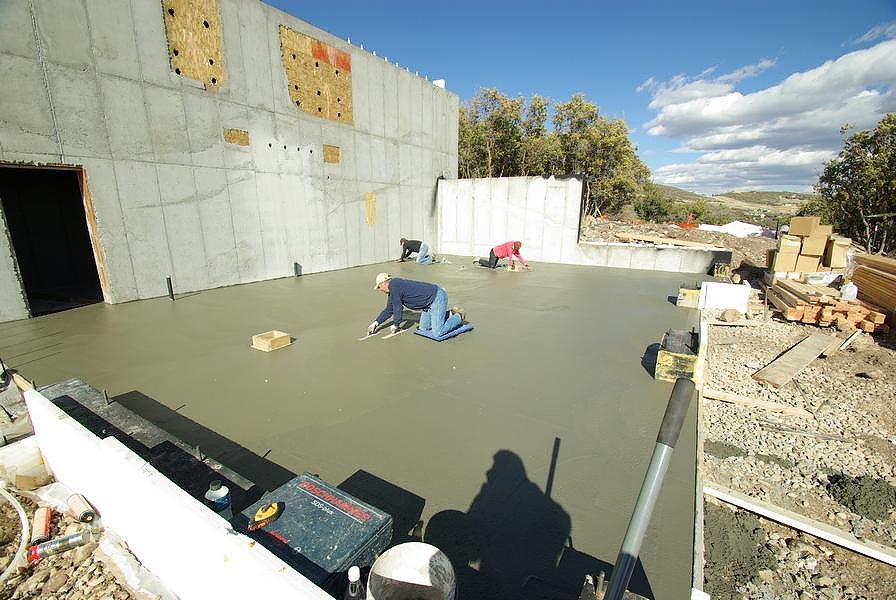

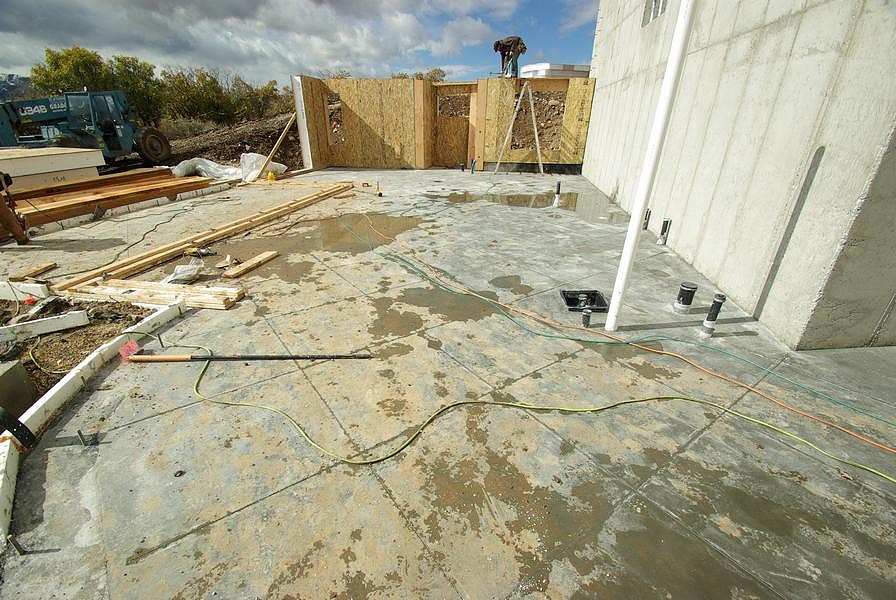

Hand finishing garage floor
Power troweling first floor to a shiny smoothness, later will be stained
Incredibly smooth finish, radon mitigation pipe in background
Cement cut to deflect future cracking
